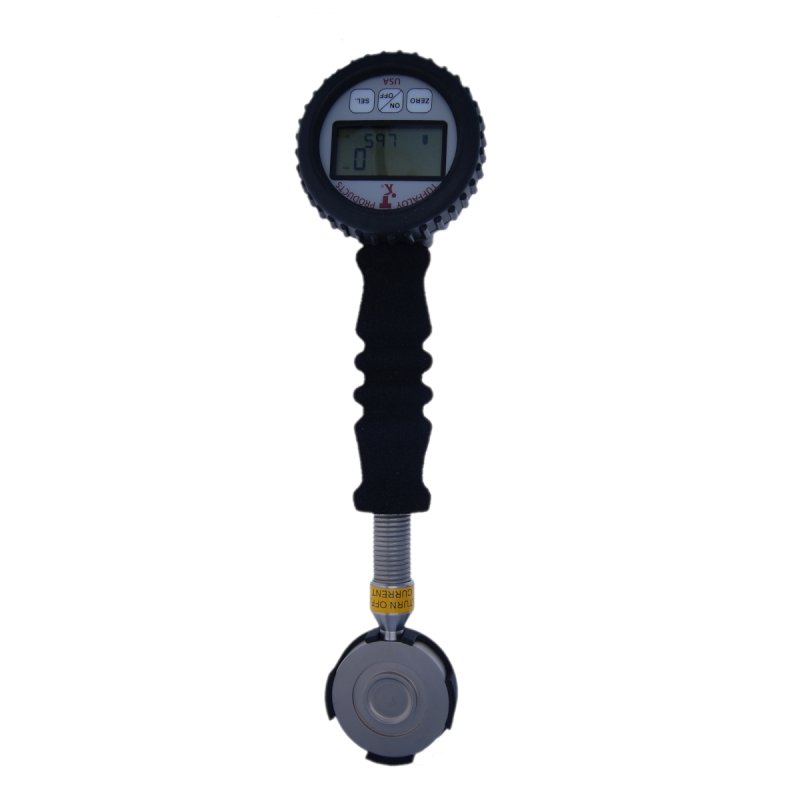

Digital Weld Gauge 5000Lb/2272Kg/22.24KN with case

Digital Weld Gauge 5000Lb/2272Kg/22.24KN with case

Part #: 601-5000DLC

Request 3D Model

Request 3D Model


The DLC line of gauges is Tuffaloy's newest model designed to replace the DR series. This fully digital gauge has a quick response time. Force is a critical variable in the resistance welding process and this tool allows users to validate and monitor the weld force.

This digital gauge has a flexible head to ensure the gauge head remains perpendicular to the electrodes for an accurate reading.

  • The maximum force reading is 5,000 lbs
  • The gauge accuracy is 0.50%
  • The gauge cannot be used during the passing of weld current.
  • Requires a 9/16 IN opening between the electrodes for use
  • NIST traceable certification
  • Users can easily change the units between Pounds (lb), Kilograms (kg), Newtons (N), and Kilonewtons (kN)
  • The Peak Hold feature displays the peak force during the measurement
  • Response time is less than 500 milliseconds

Specifications

Max. Force Measurement 5,000 LBS
Gauge Type Digital
Overall Length 13.00000
Unit of Measure IN
