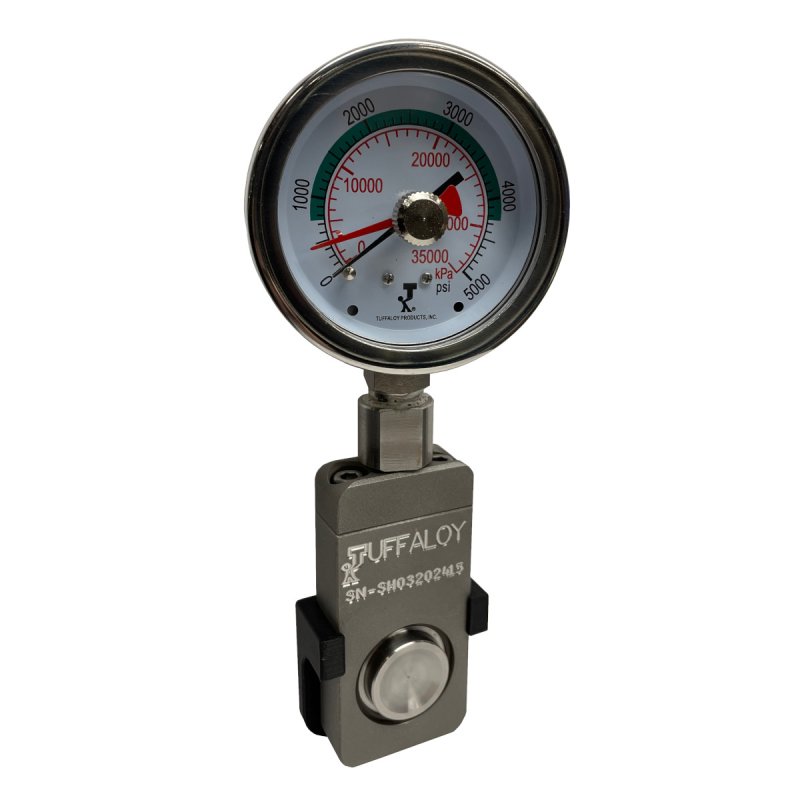

Analog Weld Gauge 3000 LB without case

Analog Weld Gauge 3000 LB without case

Part #: 601-8030

Request 3D Model

Request 3D Model


Hydraulic gages are a low cost gauge general measurements of weld force. Force is a critical variable in the resistance welding process and this tool allows users to validate and monitor the weld force.

  • The maximum force reading is 3,000 lbs
  • The gauge accuracy is 3%
  • The gauge cannot be used during the passing of weld current.
  • Requires a 0.75 IN opening between the electrodes for use
  • Dispalys units in Pounds (lb) and Kilograms (kg)

Specifications

Max. Force Measurement 3,000 LBS
Gauge Type Analog
Overall Length 6.00000
Unit of Measure IN
