4041 TRI SPACE HOLD 1-1/4

4041 TRI SPACE HOLD 1-1/4

Part #: 350-4041

Request 3D Model

Request 3D Model

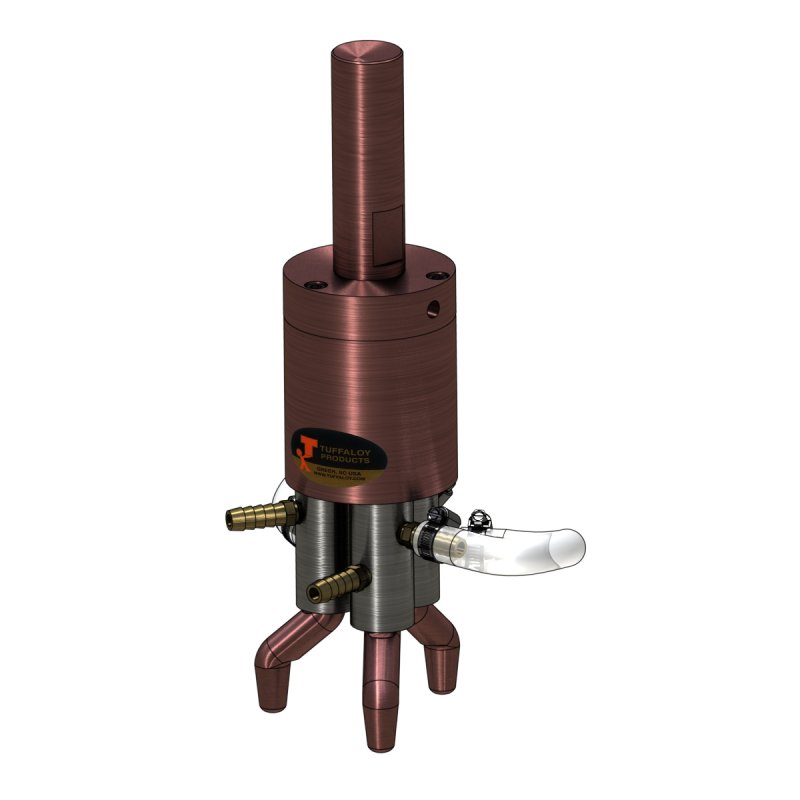

The Trispacker tip holder will make three spot welds at one time, automatically splitting the current and the pressure equally between the three tips. In doing so, it compensates for variations in work thicknesses and electrode wear up to 3/16 IN.

RMWA Class 2 material is high conductivity and high strength alloy recommended for structural, current carrying secondary components and electrode holders. This is a heat treatable alloy used in the fully heat treated condition.

  • The overal length of the part is 8.875 IN.
  • The outside diameter of the body is 3 IN
  • The part mounts via a 1.25 IN diameter shank
  • The part holds 3 tips via 5RW standard tapers which are suitable for weld forces ranging between 800 to 1500 pounds of force.
  • The electrode spacing is variable based on the tip geometry.

Specifications

RWMA Material Type RWMA Class 2
Engagement to Holder 1.25 IN diameter shank
Electrode Engagement 5RW
Overall Length 8.87500
Outer Diameter 3.00000
Body Length 3.0000
Unit of Measure IN
