Part #: 175-2252-5
Request 3D Model

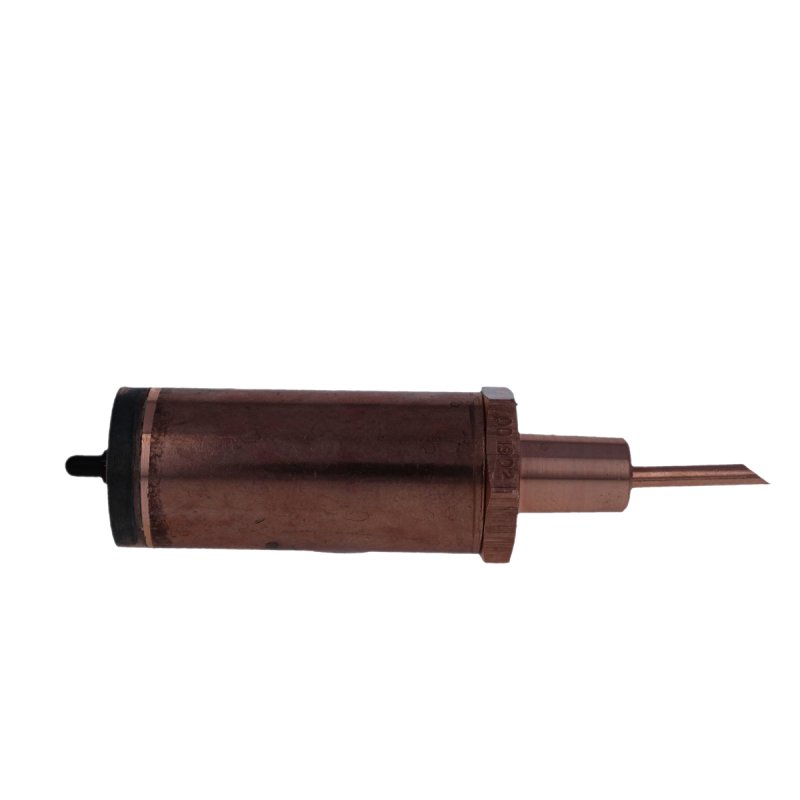

Artic Non-Piloted Nut Electrodes are for welding nuts. The part has internal water cooling lines to the weldface to improve electrode life and weld quality. The part has an insulated, spring loaded pilot that retracts when it makes contact with the upper electrode which prevents damage.
A refractory metal face is made of RWMA Class 11 (75% tungsten, 25% copper) (ASTM 702 C1D) is brazed onto the base material. This face is typically used for welding at higher pressure and heat common with projection welding.
- The overall length is 4.000 IN
- The part mounts via a 5RW standard taper which is suitable for weld forces ranging between 800 to 1500 pounds of force.
- The weld face is 1.25 IN
- The part has a spring loaded insulated pilot for welding a 1/4 nut.
|Face Refractory Material||RWMA Class 11 - 10W|
|Base RWMA Material Type||RWMA Class 2 - C18200|
|Engagement to Holder||5RW|
|Weld Face Diameter||1.25|
|For Nut Size||1/4|
|Refractory Metal Thickness||0.250|
|Unit of Measure||IN|
