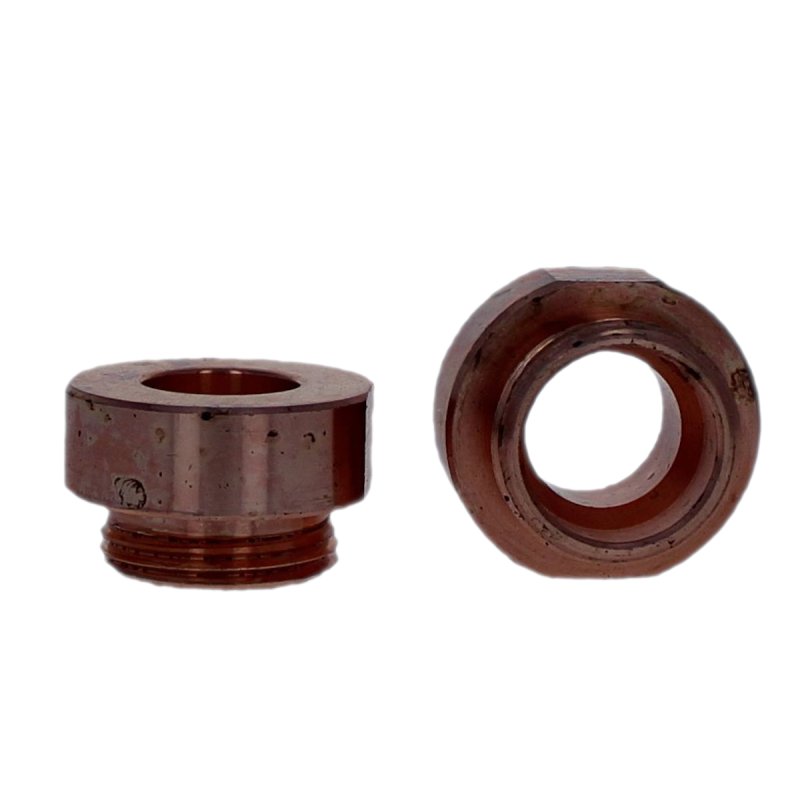

M13 13MM CAP

M13 13MM CAP

Part #: 175-8013

Request 3D Model

Request 3D Model


Metric Nut Heads are a component of the Electrode Assembly for projection welding nuts. The Head is the piece of the assembly that makes contact with the workpiece. This component is designed to be easily replaced when the weld face is worn. The Head has a through hole for a insulated metric pin.

RMWA Class 2 (C18200) material - a copper, chromium material recommend for high production operations spot welding hot or cold rolled steels, galvanized and coated materials.

  • The overall length is 0.670 IN
  • The hole diameter is 0.551 IN
  • The part mounts to the holder via M22 threads.
  • The weld face is 1.125 IN
  • The part holds a 13 mm pin

Specifications

RWMA Material Type RWMA Class 2 - C18200
Thread M22
Overall Length 0.67000
Diameter 1.125
Hole Diameter 0.55100
Unit of Measure IN
Chamfer Angle at Base 60.0
