316-10W FACED TIP

316-10W FACED TIP

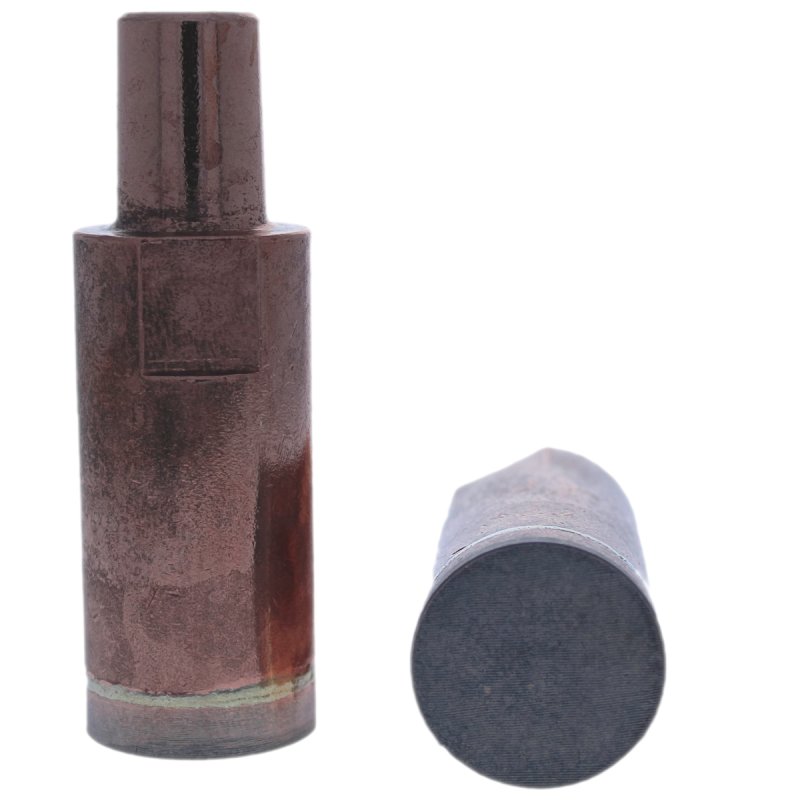

Part #: 186-0316-10W

Request 3D Model

Request 3D Model


Backup Electrodes for Uppers have a refractory metal face which has greater wear resistance than copper.

A refractory metal face is made of RWMA Class 11 (75% tungsten, 25% copper) (ASTM 702 C1D) is brazed onto the base material. This face is typically used for welding at higher pressure and heat common with projection welding.

  • The overall length is 3.000 IN
  • The part mounts via a 5RW standard taper which is suitable for weld forces ranging between 800 to 1500 pounds of force.
  • The weld face is 1 IN

Specifications

Face Refractory Material RWMA Class 11 - 10W
Base RWMA Material Type RWMA Class 2 - C18200
Engagement to Holder 5RW
Overall Length 3.00000
Weld Face Diameter 1
Length of Body 2.1250
Refractory Material Thickness 0.250
Unit of Measure IN
