Part #: 175-GH-3-322
Request 3D Model

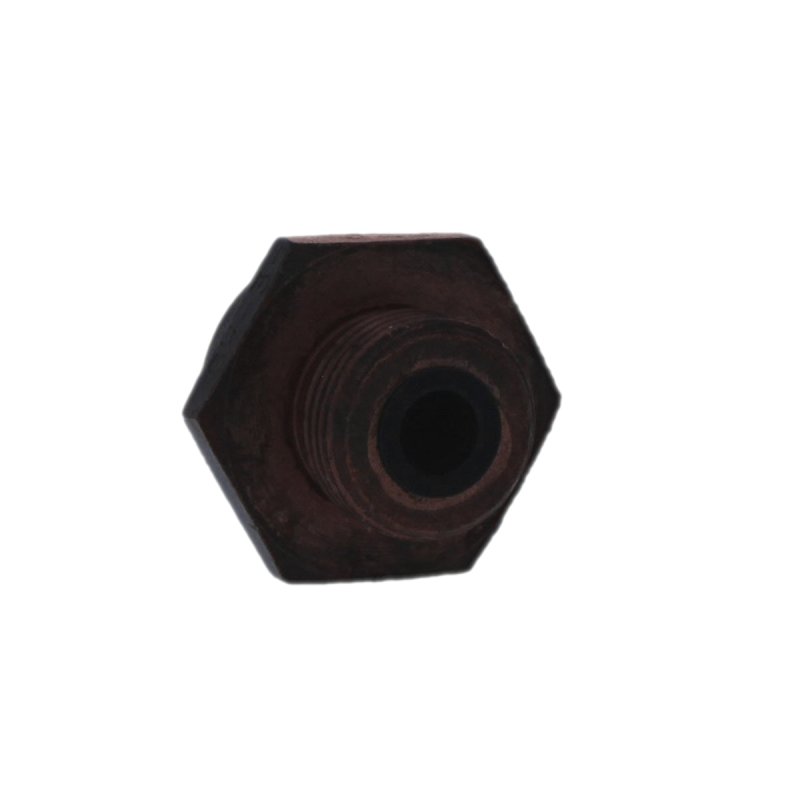

GH Heads are 10W faced electrodes designed for projection welding. The part has an insulated bushing for wear resistance. The Hex body allows for easy installation and removal of the part.
A refractory metal face is made of RWMA Class 11 (75% tungsten, 25% copper) (ASTM 702 C1D) is brazed onto the base material. This face is typically used for welding at higher pressure and heat common with projection welding.
- The overall length is 1.000 IN
- The hex width is 1.375 IN
- The part mounts to the holder via 7/8 - 14 threads.
- The weld face is 1.25 IN
- The insulated insert ID is 0.322 IN
|Face Refractory Material||RWMA Class 11 - 10W|
|Base RWMA Material Type||RWMA Class 2 - C18200|
|Thread||7/8 - 14|
|Weld Face Diameter||1.25|
|Refractory Material Thickness||0.250|
|Unit of Measure||IN|
