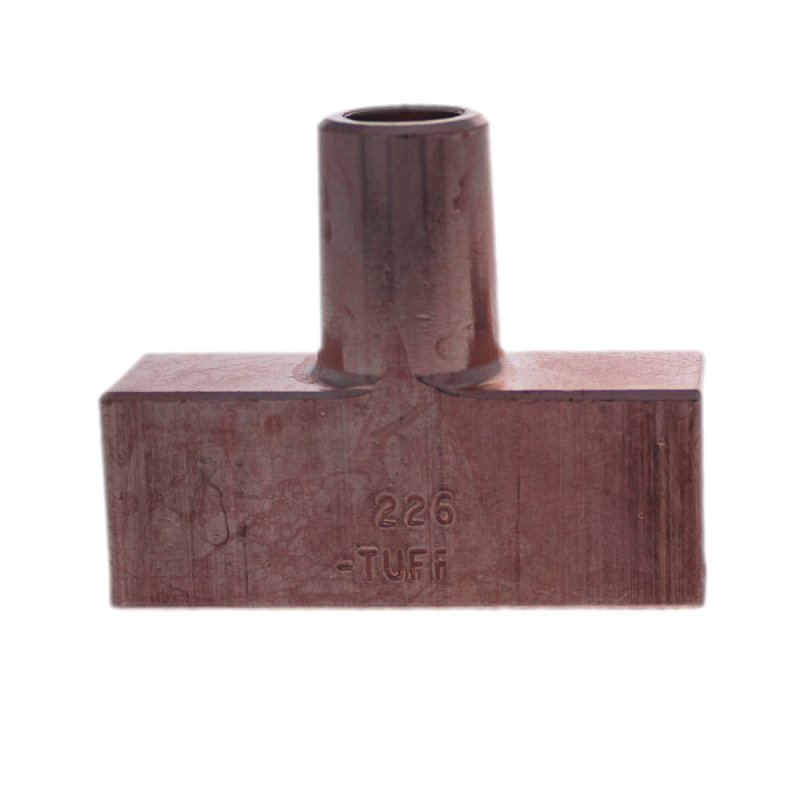

Part #: 186-0226
Request 3D Model
Backup electrodes are have a large weldface typically used for cosmetic welds or projection welds. The large weld face can used for heat balancing when welding a stackup with different material thicknesses.
RMWA Class 2 (C18200) material - a copper, chromium material recommend for high production operations spot welding hot or cold rolled steels, galvanized and coated materials.
- The overall length is 1.625 IN
- The part mounts via a 5RW standard taper which is suitable for weld forces ranging between 800 to 1500 pounds of force.
- The rectangular weld face is 2.0 x 0.625 IN
|RWMA Material Type||RWMA Class 2 - C18200|
|Weld Face Dimension||2.0 x 0.625|
|Length of Body||0.7500|
|Unit of Measure||IN|
