Part #: 131-1414
Request 3D Model

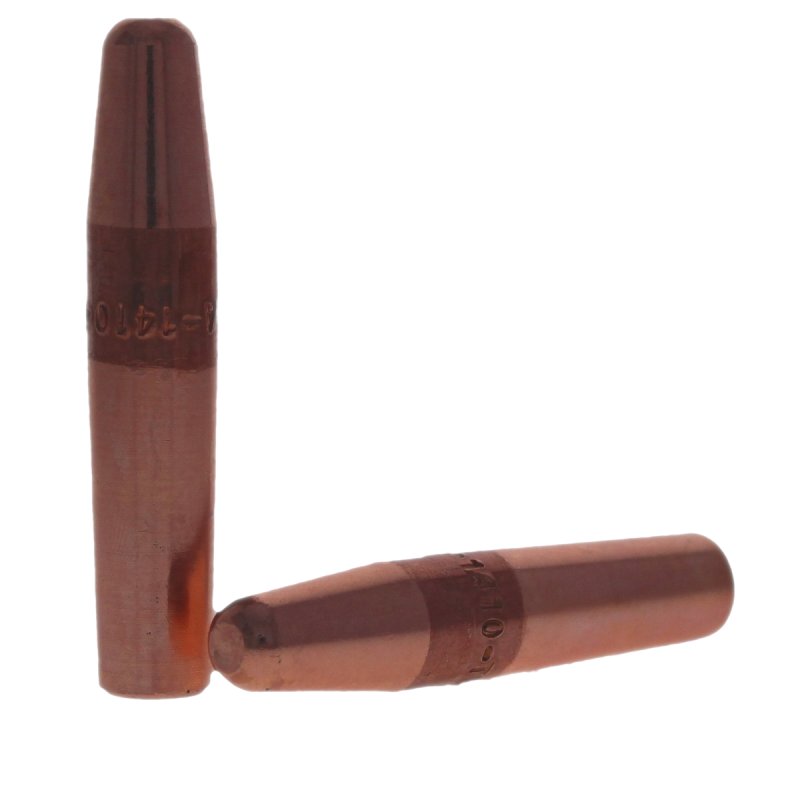

Straight tips are durable and long lasting making them a good choice for use with any standard rocker arm, press type or bench mounted machine. The deep water hole ensures proper cooling of the weld face. They are a great choice for a job shop that run many different products on the same machines.
RMWA Class 1 (C15000) material - a copper zirconium material recommended for spot welding coated materials and highly conductive materials such as aluminum, magnesium alloys, brass and bronze.
- The overall length is 3.50 IN
- The outside diameter is 0.500 IN
- The part mounts via a 4RW standard taper which is suitable for weld forces ranging between 200 to 800 pounds of force.
- The A nose or Pointed face tip is a general purpose weld face suitable for most spot welding applications.
- The weld face is 0.188 IN
|RWMA Material Type||RWMA Class 1 - C15000|
|Welding Face Dia.||0.188|
|Water Hole Dia.||0.28100|
|Water Hole Depth||3.000|
|Unit of Measure||IN|
