Part #: 152-3407
Request 3D Model

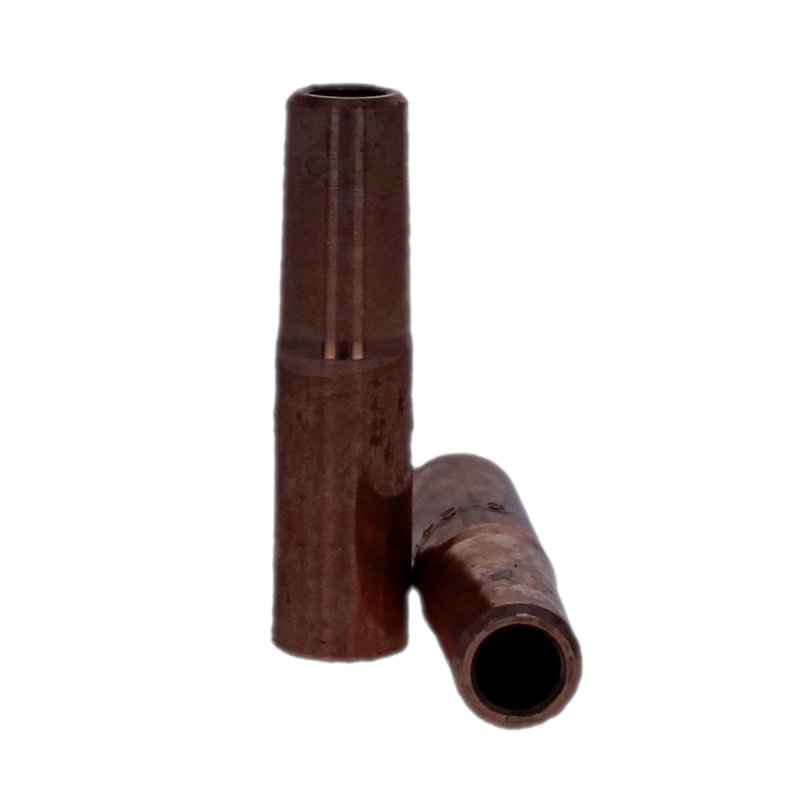

Straight tips are durable and long lasting making them a good choice for use with any standard rocker arm, press type or bench mounted machine. The deep water hole ensures proper cooling of the weld face. They are a great choice for a job shop that run many different products on the same machines.
RWMA Class 3 (C18000) is a beryllium free resistance welding alloy recommended for spot welding high resistance materials such as stainless steel, Nichrome, Inconel and Monel.
- The overall length is 1.75 IN
- The outside diameter is 0.500 IN
- The part mounts via a 4RW standard taper which is suitable for weld forces ranging between 200 to 800 pounds of force.
- The C nose of Flat face tip is frequently used as a backup electrode for projection welding, cosmetic welds, or to control heat balancing of the weld by controlling the current density.
- The weld face is 0.5 IN
|RWMA Material Type||RWMA Class 3 - C18000|
|Welding Face Dia.||0.5|
|Water Hole Dia.||0.28100|
|Water Hole Depth||1.250|
|Unit of Measure||IN|
