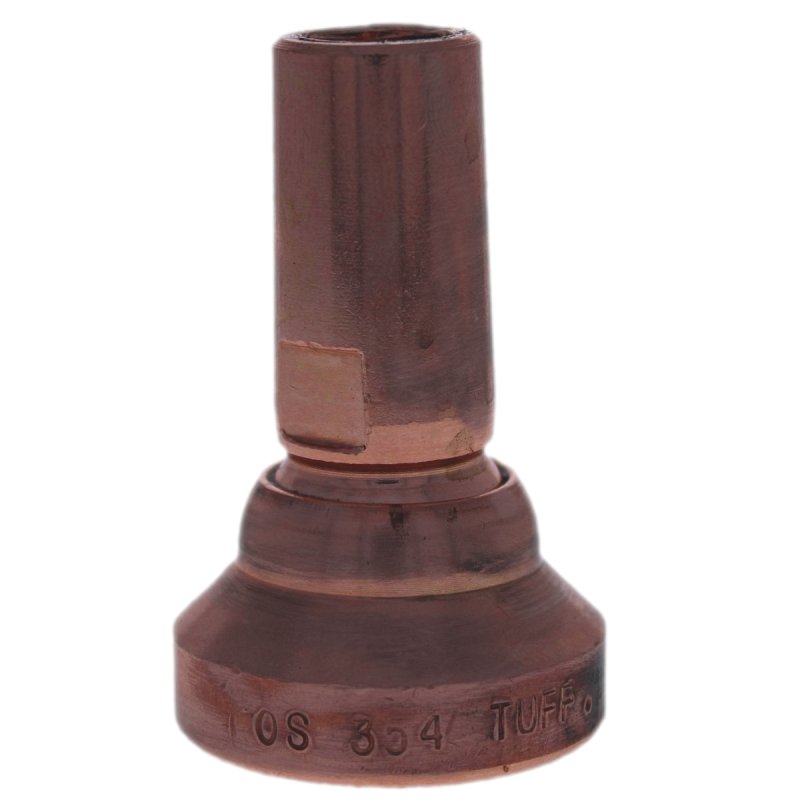

OS-354 SWIVEL TIP

OS-354 SWIVEL TIP

Part #: 182-1354

Request 3D Model

Request 3D Model


Swivel tips have a ball-jointed swivel head to compensate for misalignment, and to eliminate marking of the work surface for cosmetic welds.

RMWA Class 2 (C18200) material - a copper, chromium material recommend for high production operations spot welding hot or cold rolled steels, galvanized and coated materials.

  • The overall length is 2.000 IN
  • The part mounts via a 5RW standard taper which is suitable for weld forces ranging between 800 to 1500 pounds of force.
  • The weld face is 1.25 IN
  • For better cooling of the weld face, water contacts the head and an o-ring is used to seal it

Specifications

RWMA Material Type RWMA Class 2 - C18200
RWMA Taper 5RW
Overall Length 2.00000
Welding Face Dia. 1.25
Unit of Measure IN
O-ring Yes
