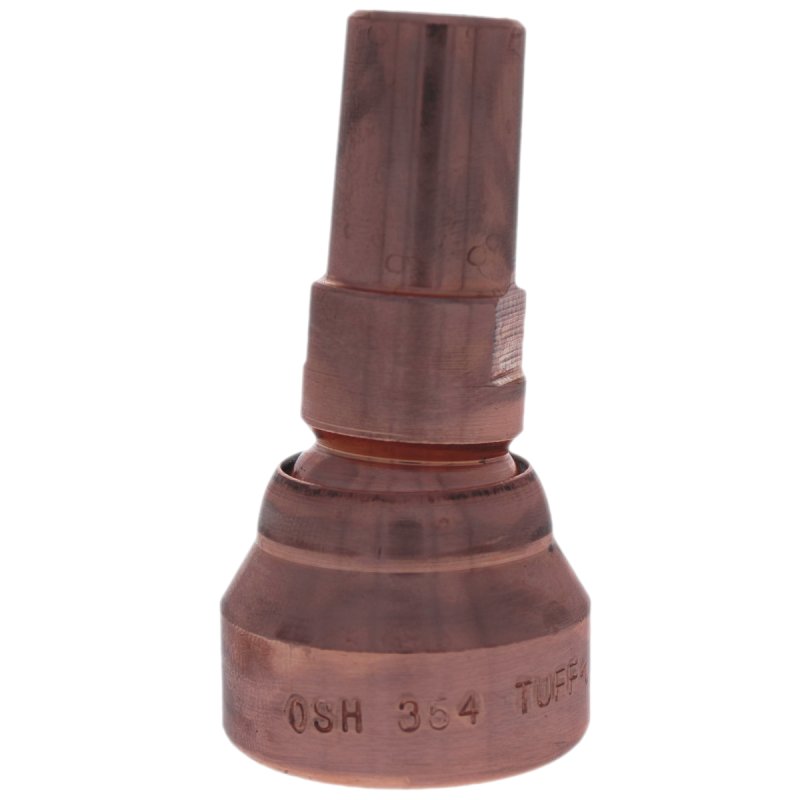

OSH-354 SWIVEL TIP
Part #: 182-2354
Request 3D Model
Swivel tips have a ball-jointed swivel head to compensate for misalignment, and to eliminate marking of the work surface for cosmetic welds.
RMWA Class 2 (C18200) material - a copper, chromium material recommend for high production operations spot welding hot or cold rolled steels, galvanized and coated materials.
- The overall length is 2.400 IN
- The part mounts via a 5RW standard taper which is suitable for weld forces ranging between 800 to 1500 pounds of force.
- The weld face is 1.25 IN
- For better cooling of the weld face, water contacts the head and an o-ring is used to seal it
|RWMA Material Type||RWMA Class 2 - C18200|
|Welding Face Dia.||1.25|
|Unit of Measure||IN|
