Offset Holders

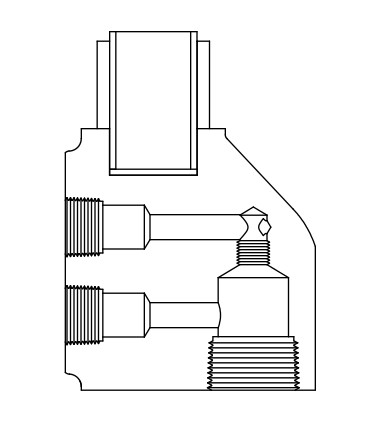

Tuffaloy Cylinder Mounted Offset Holder Header

Cylinder Mounted Offset Holders are designed to mount directly to air or hydraulic acutators. The compact design makes them an ideal choice for multi-head machines. The replaceable threaded adapter and water tube which can be sized to the application and insure proper water flow to the tips.

Part Description RWMA Material Type Diameter for Clamp Pipe Thread for Adapter Overall Length Offset Width of Body Unit of Measure
194-1582
653-0080-2 HOLDER RWMA Class 2 1.125 IN diameter 1/2 NPT 3.50000 0.2500 1.81000 IN
194-1598
653-0080-8 3/4" NPT RWMA Class 2 1.125 IN diameter 3/4 NPT 3.50000 1.0000 2.50000 IN
194-1596
653-0080-6 3/4" NPT RWMA Class 2 1.125 IN diameter 3/4 NPT 3.50000 0.7500 2.31000 IN
194-1594
653-0080-4 3/4" NPT RWMA Class 2 1.125 IN diameter 3/4 NPT 3.50000 0.5000 2.06000 IN
194-1588
653-0080-8 HOLDER RWMA Class 2 1.125 IN diameter 1/2 NPT 3.50000 1.0000 2.50000 IN
194-1587
653-0080-7 HOLDER RWMA Class 2 1.125 IN diameter 1/2 NPT 3.50000 0.8800 2.50000 IN
194-1586
653-0080-6 HOLDER RWMA Class 2 1.125 IN diameter 1/2 NPT 3.50000 0.7500 2.31000 IN
194-1585
653-0080-5 HOLDER RWMA Class 2 1.125 IN diameter 1/2 NPT 3.50000 0.6200 2.18000 IN
194-1584
653-0080-4 HOLDER RWMA Class 2 1.125 IN diameter 1/2 NPT 3.50000 0.5000 2.06000 IN
194-1583
653-0080-3 HOLDER RWMA Class 2 1.125 IN diameter 1/2 NPT 3.50000 0.3800 1.94000 IN
194-1571
653-0080-1 (7/8-14THD) RWMA Class 2 1.125 IN diameter 7/8 - 14 3.50000 0.1200 1.68000 IN
194-1581
653-0080-1 HOLDER RWMA Class 2 1.125 IN diameter 1/2 NPT 3.50000 0.1200 1.68000 IN
194-1578
653-0080-8 (7/8-14THD) RWMA Class 2 1.125 IN diameter 7/8 - 14 3.50000 1.0000 2.50000 IN
194-1577
653-0080-7 (7/8-14THD) RWMA Class 2 1.125 IN diameter 7/8 - 14 3.50000 0.8800 2.50000 IN
194-1576
653-0080-6 (7/8-14THD) RWMA Class 2 1.125 IN diameter 7/8 - 14 3.50000 0.7500 2.31000 IN
194-1575
653-0080-5 (7/8-14THD) RWMA Class 2 1.125 IN diameter 7/8 - 14 3.50000 0.6200 2.18000 IN
194-1574
653-0080-4 (7/8-14THD) RWMA Class 2 1.125 IN diameter 7/8 - 14 3.50000 0.5000 2.06000 IN
194-1573
653-0080-3 (7/8-14THD) 3.50000 0.3800 1.94000 IN
194-1572
653-0080-2 (7/8-14THD) RWMA Class 2 1.125 IN diameter 7/8 - 14 3.50000 0.2500 1.81000 IN
653-0080-2 HOLDER 653-0080-8 3/4" NPT 653-0080-6 3/4" NPT 653-0080-4 3/4" NPT 653-0080-8 HOLDER 653-0080-7 HOLDER 653-0080-6 HOLDER 653-0080-5 HOLDER 653-0080-4 HOLDER 653-0080-3 HOLDER 653-0080-1 (7/8-14THD) 653-0080-1 HOLDER 653-0080-8 (7/8-14THD) 653-0080-7 (7/8-14THD) 653-0080-6 (7/8-14THD) 653-0080-5 (7/8-14THD) 653-0080-4 (7/8-14THD) 653-0080-3 (7/8-14THD) 653-0080-2 (7/8-14THD)
