SE-3099 CL2 SOCKET TIP

Part #: 170-3099

Request 3D Model

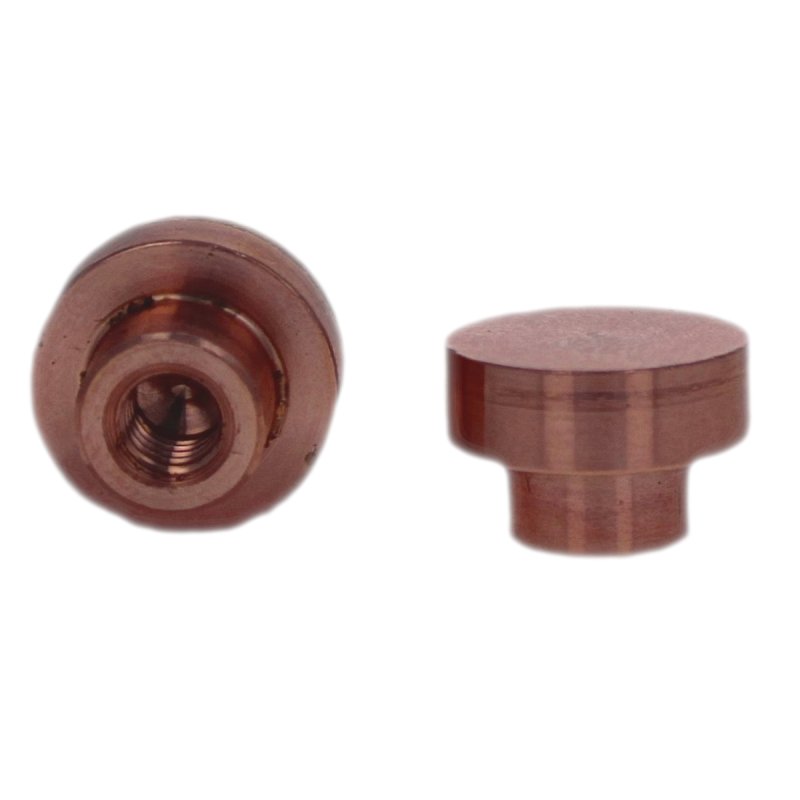

Socket Tips for Paddle Holders are designed for welding in tight spaces. The low profile design allows users to weld in areas with minimal clearances.

RMWA Class 2 (C18200) material - a copper, chromium material recommend for high production operations spot welding hot or cold rolled steels, galvanized and coated materials.

The overall length is 0.3750 IN
The outside diameter is 0.562 IN
A 10 - 32 Tap Hold Screw holds the tip in place
The C nose of Flat face tip is frequently used as a backup electrode for projection welding, cosmetic welds, or to control heat balancing of the weld by controlling the current density.
The weld face is 0.562 IN

Specifications

RWMA Material Type	RWMA Class 2 - C18200
Thread Size	10 - 32 Tap Hold Screw
Nose Type	C
Overall Length	0.37500
Diameter	0.56250
Welding Face Dia.	0.5625
Body Length	0.1875
Unit of Measure	IN
