SE-3099-Z SOCKET TIP

SE-3099-Z SOCKET TIP

Part #: 170-3099-Z

Request 3D Model

Request 3D Model

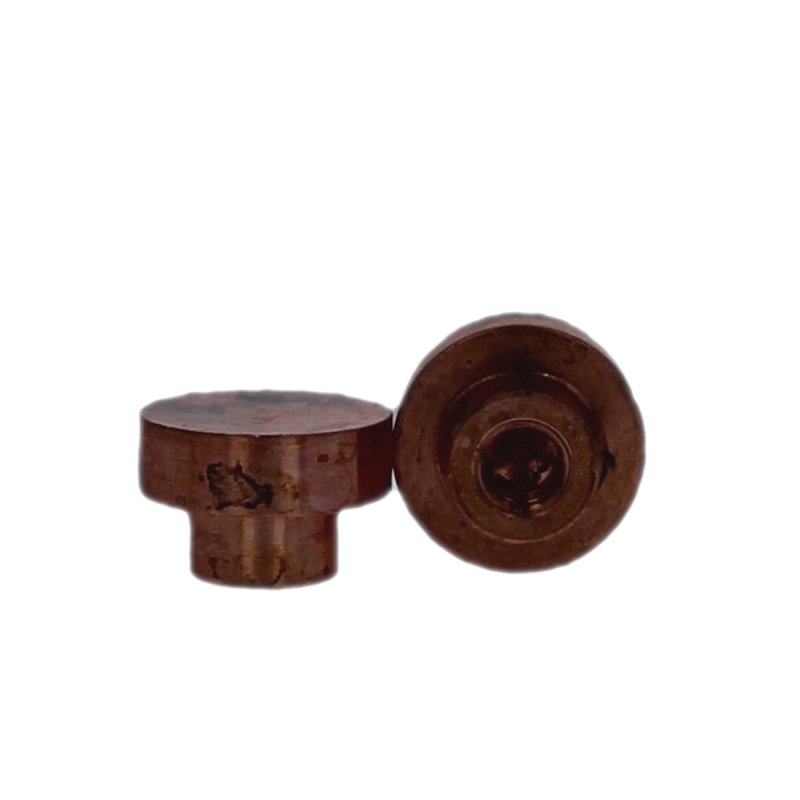

Socket Tips for Paddle Holders are designed for welding in tight spaces. The low profile design allows users to weld in areas with minimal clearances.

RMWA Class 2 (C18150) is a copper, chromium, zirconium material recommend for spot welding hot or cold rolled steels. It is often used for galvanized and coated material.

  • The overall length is 0.3750 IN
  • The outside diameter is 0.562 IN
  • A 10 - 32 Tap Hold Screw holds the tip in place
  • The C nose of Flat face tip is frequently used as a backup electrode for projection welding, cosmetic welds, or to control heat balancing of the weld by controlling the current density.
  • The weld face is 0.562 IN

Specifications

RWMA Material Type RWMA Class 2 - C18150
Thread Size 10 - 32 Tap Hold Screw
Nose Type C
Overall Length 0.37500
Diameter 0.56250
Welding Face Dia. 0.5625
Body Length 0.1875
Unit of Measure IN
