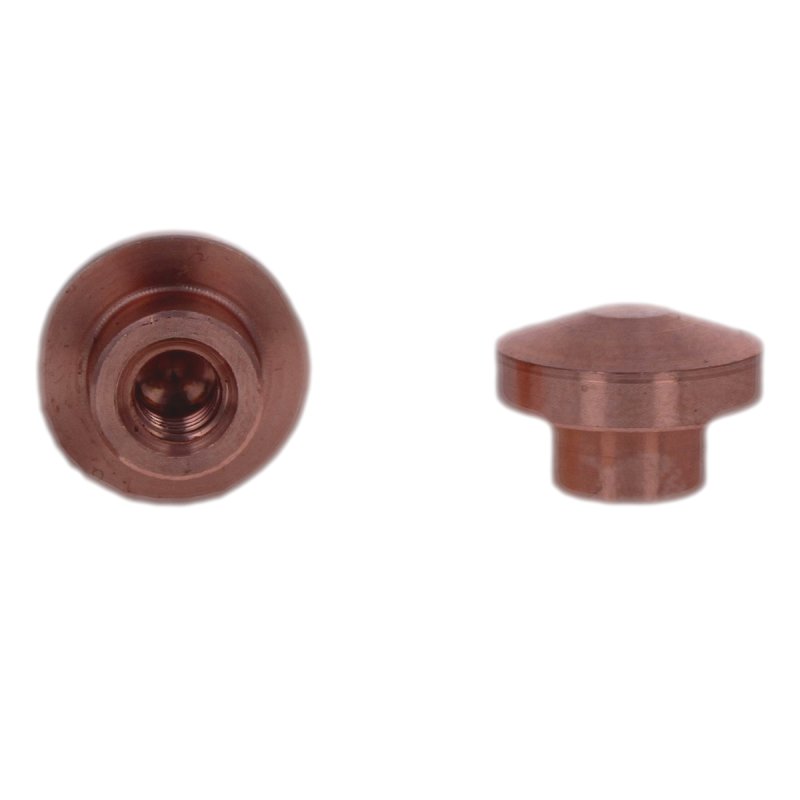

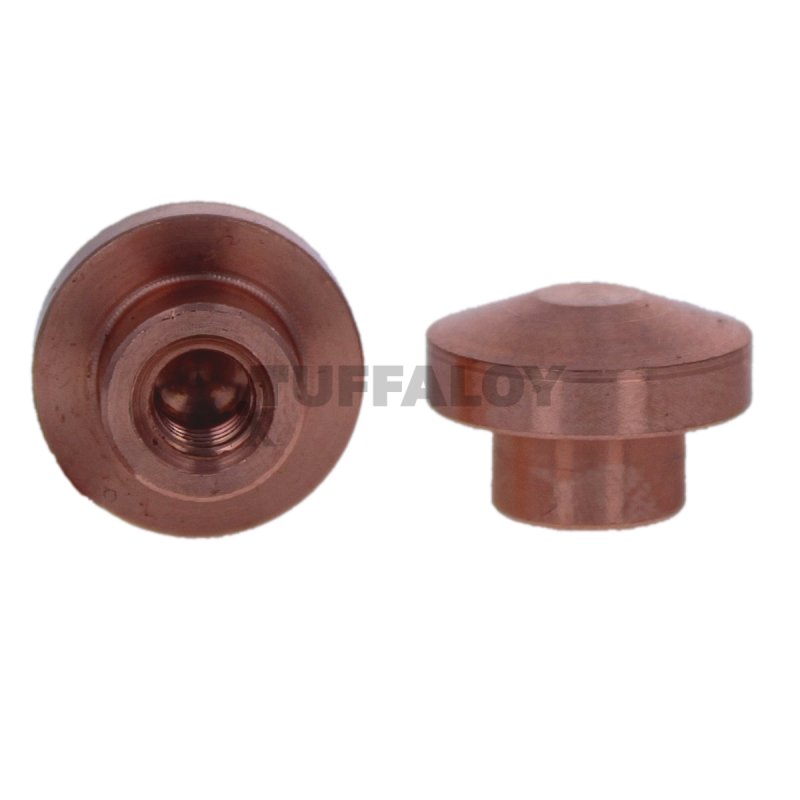

SE-3101-Z SOCKET TIP
Part #: 170-3101-Z
Request 3D Model
Socket Tips for Paddle Holders are designed for welding in tight spaces. The low profile design allows users to weld in areas with minimal clearances.
RMWA Class 2 (C18150) is a copper, chromium, zirconium material recommend for spot welding hot or cold rolled steels. It is often used for galvanized and coated material.
- The overall length is 0.3750 IN
- The outside diameter is 0.562 IN
- A 10 - 32 Tap Hold Screw holds the tip in place
- The E nose or Truncated face tip is an efficient design that does not trap weld flash on the face and may reduce mushrooming.
- The weld face is 0.188 IN
Specifications
| RWMA Material Type | RWMA Class 2 - C18150 |
|---|---|
| Thread Size | 10 - 32 Tap Hold Screw |
| Nose Type | E |
| Overall Length | 0.37500 |
| Diameter | 0.56250 |
| Welding Face Dia. | 0.1875 |
| Body Length | 0.1875 |
| Unit of Measure | IN |
| Offset / Truncated Angle | 20.0 |
