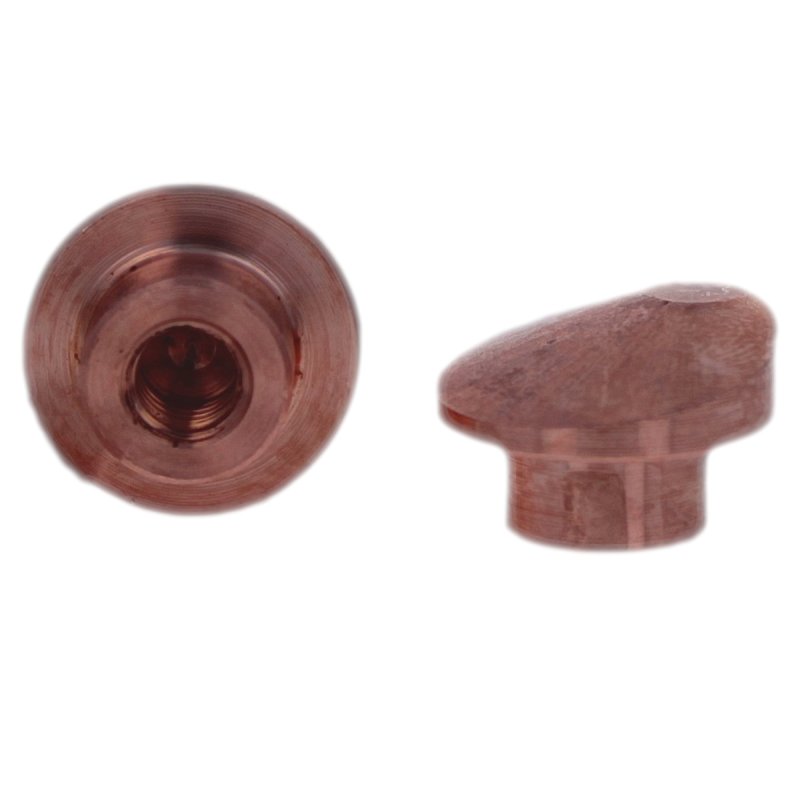

SE-3102-1 CL1 SOCKET TIP
Part #: 170-3102-1
Request 3D Model
Socket Tips for Paddle Holders are designed for welding in tight spaces. The low profile design allows users to weld in areas with minimal clearances.
RMWA Class 1 (C15000) material - a copper zirconium material recommended for spot welding coated materials and highly conductive materials such as aluminum, magnesium alloys, brass and bronze.
- The overall length is 0.3750 IN
- The outside diameter is 0.562 IN
- A 10 - 32 Tap Hold Screw holds the tip in place
- The D nose or Offest face tip is used for welds in tight spaces typically on a flange or tight corner. It reqiures manual orientation during setup.
- The weld face is 0.188 IN
Specifications
| RWMA Material Type | RWMA Class 1 - C15000 |
|---|---|
| Thread Size | 10 - 32 Tap Hold Screw |
| Nose Type | D |
| Overall Length | 0.37500 |
| Diameter | 0.56250 |
| Welding Face Dia. | 0.1875 |
| Body Length | 0.1875 |
| Unit of Measure | IN |
| Offset / Truncated Angle | 20.0 |
