SE-3110-1 CL1 SOCKET TIP

SE-3110-1 CL1 SOCKET TIP

Part #: 170-3110-1

Request 3D Model

Request 3D Model

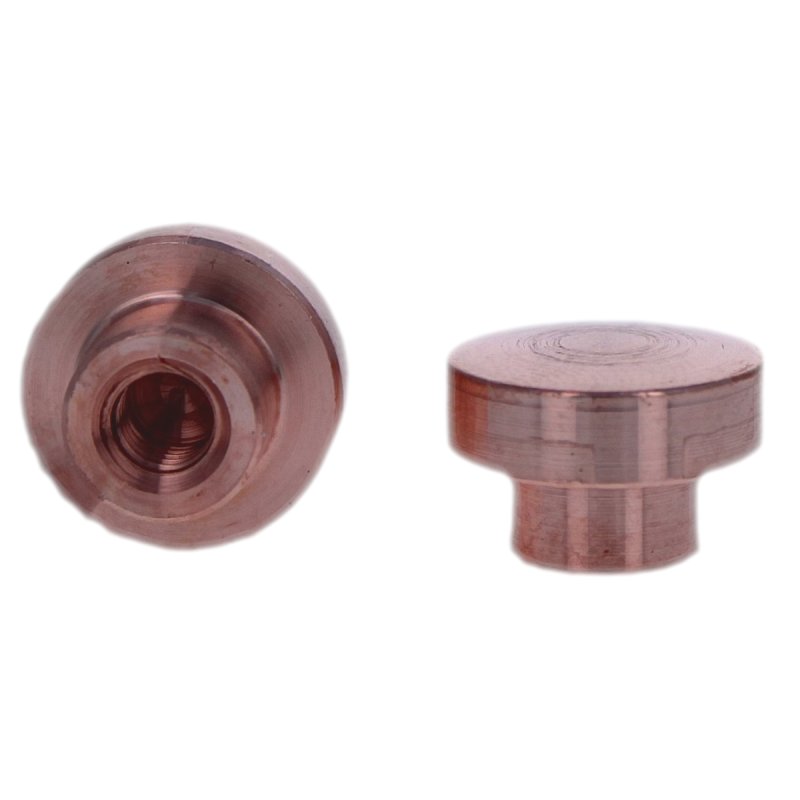

Socket Tips for Paddle Holders are designed for welding in tight spaces. The low profile design allows users to weld in areas with minimal clearances.

RMWA Class 1 (C15000) material - a copper zirconium material recommended for spot welding coated materials and highly conductive materials such as aluminum, magnesium alloys, brass and bronze.

  • The overall length is 0.3750 IN
  • The outside diameter is 0.562 IN
  • A 10 - 32 Tap Hold Screw holds the tip in place
  • The F nose or Radius face tip is typically used for alumium welding because it provides point contact to break through the aluminum oxide layer on the surface while still providing an adequate weldface to manage the current density during welding.
  • The weld face is 2 inch radius IN

Specifications

RWMA Material Type RWMA Class 1 - C15000
Thread Size 10 - 32 Tap Hold Screw
Nose Type F
Overall Length 0.37500
Diameter 0.56250
Welding Face Dia. 2 inch radius
Body Length 0.1875
Unit of Measure IN
