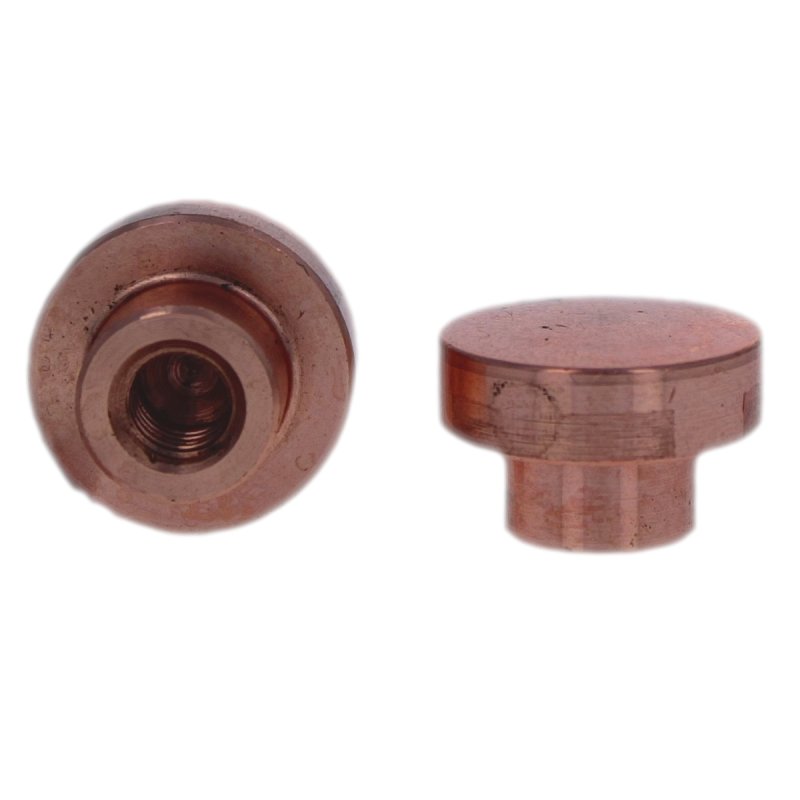

SE-3110 CL2 SOCKET TIP

Part #: 170-3110

Request 3D Model

Socket Tips for Paddle Holders are designed for welding in tight spaces. The low profile design allows users to weld in areas with minimal clearances.

RMWA Class 2 (C18200) material - a copper, chromium material recommend for high production operations spot welding hot or cold rolled steels, galvanized and coated materials.

The overall length is 0.3750 IN
The outside diameter is 0.562 IN
A 10 - 32 Tap Hold Screw holds the tip in place
The F nose or Radius face tip is typically used for alumium welding because it provides point contact to break through the aluminum oxide layer on the surface while still providing an adequate weldface to manage the current density during welding.
The weld face is 2 inch radius IN

Specifications

RWMA Material Type	RWMA Class 2 - C18200
Thread Size	10 - 32 Tap Hold Screw
Nose Type	F
Overall Length	0.37500
Diameter	0.56250
Welding Face Dia.	2 inch radius
Body Length	0.1875
Unit of Measure	IN
