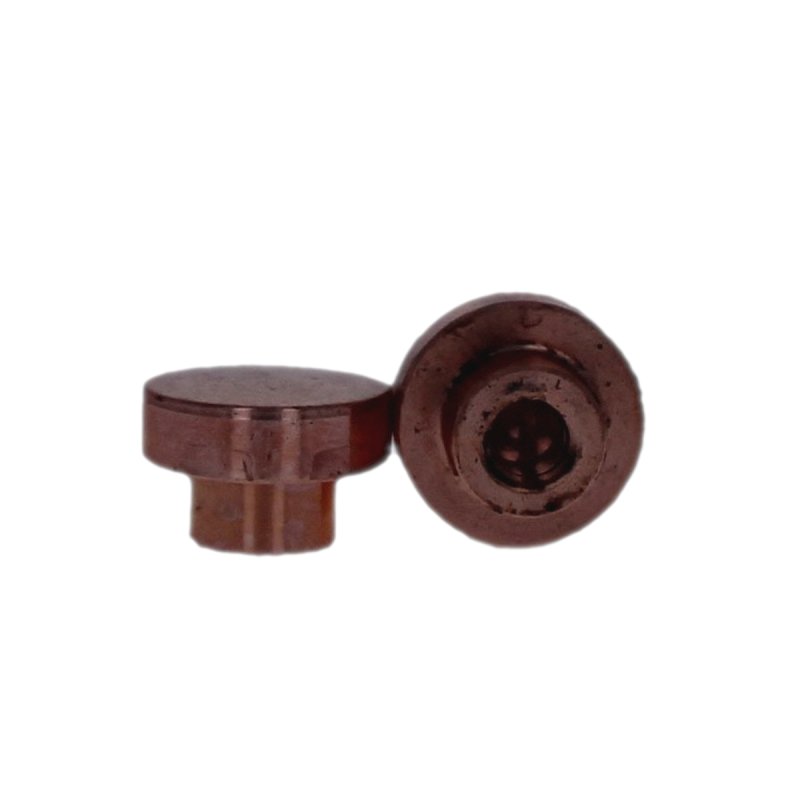

SE-3110-Z SOCKET TIP
Part #: 170-3110-Z
Request 3D Model
Socket Tips for Paddle Holders are designed for welding in tight spaces. The low profile design allows users to weld in areas with minimal clearances.
RMWA Class 2 (C18150) is a copper, chromium, zirconium material recommend for spot welding hot or cold rolled steels. It is often used for galvanized and coated material.
- The overall length is 0.3750 IN
- The outside diameter is 0.562 IN
- A 10 - 32 Tap Hold Screw holds the tip in place
- The F nose or Radius face tip is typically used for alumium welding because it provides point contact to break through the aluminum oxide layer on the surface while still providing an adequate weldface to manage the current density during welding.
- The weld face is 2 inch radius IN
Specifications
| RWMA Material Type | RWMA Class 2 - C18150 |
|---|---|
| Thread Size | 10 - 32 Tap Hold Screw |
| Nose Type | F |
| Overall Length | 0.37500 |
| Diameter | 0.56250 |
| Welding Face Dia. | 2 inch radius |
| Body Length | 0.1875 |
| Unit of Measure | IN |
