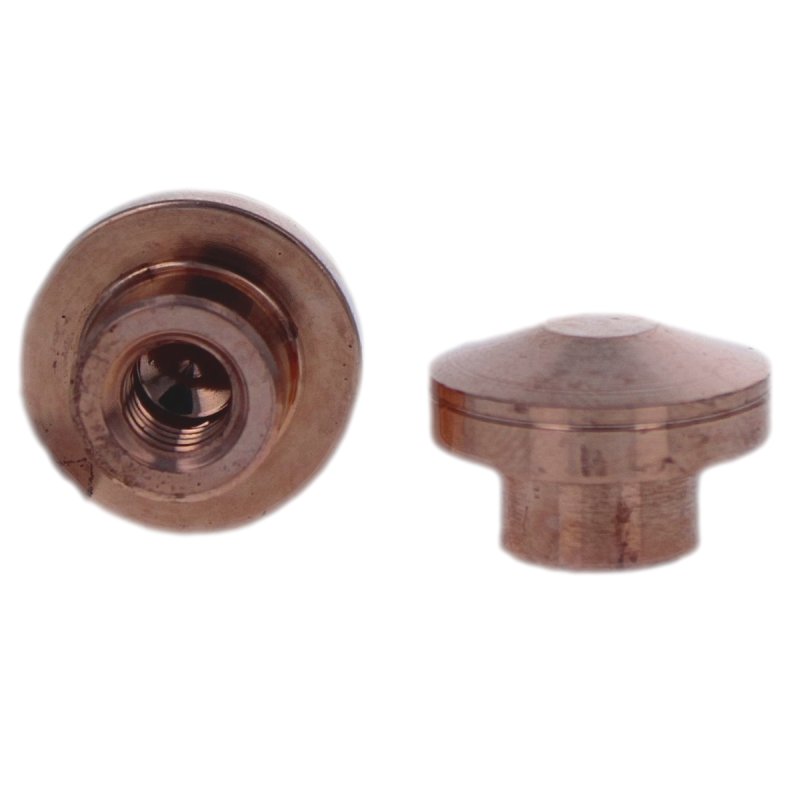

SE-3113 CL3 SOCKET TIP

Part #: 170-3113

Request 3D Model

Socket Tips for Paddle Holders are designed for welding in tight spaces. The low profile design allows users to weld in areas with minimal clearances.

RWMA Class 3 (C18000) is a beryllium free resistance welding alloy recommended for spot welding high resistance materials such as stainless steel, Nichrome, Inconel and Monel.

The overall length is 0.3750 IN
The outside diameter is 0.562 IN
A 10 - 32 Tap Hold Screw holds the tip in place
The E nose or Truncated face tip is an efficient design that does not trap weld flash on the face and may reduce mushrooming.
The weld face is 0.188 IN

Specifications

RWMA Material Type	RWMA Class 3 - C18000
Thread Size	10 - 32 Tap Hold Screw
Nose Type	E
Overall Length	0.37500
Diameter	0.56250
Welding Face Dia.	0.1875
Body Length	0.1875
Unit of Measure	IN
Offset / Truncated Angle	20.0
