Part #: 325-0120
Request 3D Model

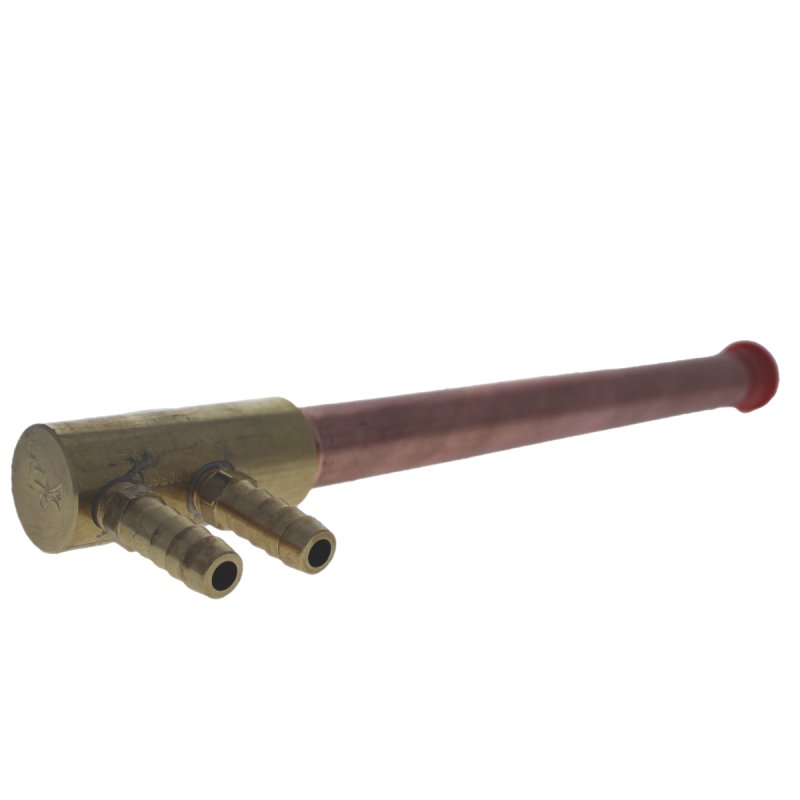

Straight holders or barrel holders have a simple design to minimize the maintenance costs for users. The holders have adjustable water tubes to maximize cooling of the tip which maximizes tip life. Straight holders are designed for use with Rocker Arm and Pedestal Type welders.
RMWA Class 2 material is high conductivity and high strength alloy recommended for structural, current carrying secondary components and electrode holders. This is a heat treatable alloy used in the fully heat treated condition.
- The overall length is 12.000 IN
- The outside diameter is 0.625 IN
- The part holds a subcomponent via a 4RW standard taper which is suitable for weld forces ranging between 200 to 800 pounds of force.
|RWMA Material Type||RWMA Class 2|
|Holder Type||Goldspot Non-Ejector|
|Unit of Measure||IN|
