Teeter Tip Adapter

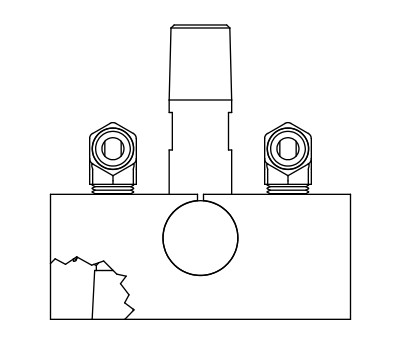

Tuffaloy Teeter Tip Header

You can spot or projection weld in half the time by doubling the number of welds per machine stroke. Use Teeter-Tip dual tip adapters, which come with watercoolant fittings to beat high heat build-up. These, adapters transmit total pressures of 1000 lbs., and deliver equal current and pressure to each tip. They compensate for normal electrode wear, imperfect tip dressing, and work variations up to .060”.

LIGHT-DUTY adapters have no. 4 or 5 RW shanks, tip spacing to 4 inches, tip sockets for 1/2” or 5/8” diameter male Tuffcap caps, or 4 RW tips (5/8” cap sockets are standard).

HEAVY-DUTY adapters have shanks from 5 to 7 RW size, tip spacing to 6 inches, tip sockets for 1/2” or 5/8”’ diameter male Tuffcap caps, or 4 or 5 RW tips (4 RW sockets are standard). These adapters have a deeper, stronger body.

PartDescription RWMA Material Type Engagement to Holder Electrode Engagement Overall Length Body Length Body Width Body Thickness Electrode Spacing Unit of Measure
191-0611
TT-1408-1.25"-4CT SOCKETS RWMA Class 2 4RW 4RW Cap Taper 2.62500 1.2500 2.50000 1.00000 1.250 IN
191-0612
TT-1408-1.25"-5CT SOCKETS RWMA Class 2 4RW 5RW Cap Taper 2.62500 1.2500 2.50000 1.00000 1.250 IN
191-0613
TT-1408-1.25"-4RW SOCKETS RWMA Class 2 4RW 4RW 2.62500 1.2500 2.50000 1.00000 1.250 IN
191-0615
TT-1408-1.5"-4CT SOCKETS RWMA Class 2 4RW 4RW Cap Taper 2.62500 1.2500 2.50000 1.00000 1.500 IN
191-0616
TT-1408-1.5"-4RW SOCKETS RWMA Class 2 4RW 4RW 2.62500 1.2500 2.50000 1.00000 1.500 IN
191-0712
TT-1508-1.75"-5CT SOCKETS RWMA Class 2 5RW 5RW Cap Taper 2.62500 1.2500 2.50000 1.00000 1.750 IN
191-0713
TT-1508-1.75"-4RW SOCKETS RWMA Class 2 5RW 4RW 2.62500 1.2500 2.50000 1.00000 1.750 IN
191-0810
TT-1508-1.25"-4CT SOCKETS RWMA Class 2 5RW 4RW Cap Taper 2.62500 1.2500 2.50000 1.00000 1.250 IN
191-0812
TT-1508-1.25"-5CT SOCKETS RWMA Class 2 5RW 5RW Cap Taper 2.62500 1.2500 2.50000 1.00000 1.250 IN
191-0813
TT-1508-1.25"-4RW SOCKETS RWMA Class 2 5RW 4RW 2.62500 1.2500 2.50000 1.00000 1.250 IN
191-0822
TT-1508-1.5"-5CT SOCKETS RWMA Class 2 5RW 5RW Cap Taper 2.62500 1.2500 2.50000 1.00000 1.500 IN
191-0823
TT-1508-1.5"- 4RW SOCKETS RWMA Class 2 5RW 4RW 2.62500 1.2500 2.50000 1.00000 1.500 IN
191-0824
TT-1508-1.5"- 5RW SOCKETS RWMA Class 2 5RW 5RW 2.62500 1.2500 2.50000 1.00000 1.500 IN
191-0831
TT-1508-1.88"-4RW SOCKET RWMA Class 2 5RW 4RW 2.62500 1.2500 2.50000 1.00000 1.880 IN
191-0832
TT-1508-2.0"-5CT SOCKETS RWMA Class 2 5RW 5RW Cap Taper 2.62500 1.2500 2.50000 1.00000 2.000 IN
191-0833
TT-1508-2.0"-4RW SOCKETS RWMA Class 2 5RW 4RW 2.62500 1.2500 2.50000 1.00000 2.000 IN
191-5510
TT-1516-2.5"-5CT SOCKET RWMA Class 2 5RW 5RW Cap Taper 2.62500 1.2500 2.50000 1.00000 2.500 IN
191-5513
TT-1516-3.0-4RW SOCKETS RWMA Class 2 5RW 4RW 2.62500 1.2500 2.50000 1.00000 3.000 IN
191-6512
TT-15516-2.0"-5CT SOCKETS RWMA Class 2 5RW 5RW Cap Taper 3.25000 1.7500 3.75000 1.50000 2.000 IN
191-6514
TT-15516-2.0"-5RW SOCKETS RWMA Class 2 5RW 5RW 3.25000 1.7500 3.75000 1.50000 2.000 IN
191-6633
TT-15516-2.0"-4RW SOCKETS RWMA Class 2 5RW 4RW 3.25000 1.7500 3.75000 1.50000 2.000 IN
191-6635
TT-15516-2.25"-4RW SOCKET RWMA Class 2 5RW 4RW 3.25000 1.7500 3.75000 1.50000 2.250 IN
191-6643
TT-15516-2.5"-5RW SOCKETS RWMA Class 2 5RW 5RW 3.25000 1.7500 3.75000 1.50000 2.500 IN
191-6645
TT-15516-2.625"-5RW SOCKE RWMA Class 2 5RW 5RW 3.25000 1.7500 3.75000 1.50000 2.625 IN
191-6653
TT-15516-3.0"- 5RW SOCKET RWMA Class 2 5RW 5RW 3.25000 1.7500 4.50000 1.50000 3.000 IN
191-6660
TT-15516-4.0"-5RW SOCKETS RWMA Class 2 5RW 5RW 3.25000 1.7500 5.25000 1.50000 4.000 IN
TT-1408-1.25"-4CT SOCKETS TT-1408-1.25"-5CT SOCKETS TT-1408-1.25"-4RW SOCKETS TT-1408-1.5"-4CT SOCKETS TT-1408-1.5"-4RW SOCKETS TT-1508-1.75"-5CT SOCKETS TT-1508-1.75"-4RW SOCKETS TT-1508-1.25"-4CT SOCKETS TT-1508-1.25"-5CT SOCKETS TT-1508-1.25"-4RW SOCKETS TT-1508-1.5"-5CT SOCKETS TT-1508-1.5"- 4RW SOCKETS TT-1508-1.5"- 5RW SOCKETS TT-1508-1.88"-4RW SOCKET TT-1508-2.0"-5CT SOCKETS TT-1508-2.0"-4RW SOCKETS TT-1516-2.5"-5CT SOCKET TT-1516-3.0-4RW SOCKETS TT-15516-2.0"-5CT SOCKETS TT-15516-2.0"-5RW SOCKETS TT-15516-2.0"-4RW SOCKETS TT-15516-2.25"-4RW SOCKET TT-15516-2.5"-5RW SOCKETS TT-15516-2.625"-5RW SOCKE TT-15516-3.0"- 5RW SOCKET TT-15516-4.0"-5RW SOCKETS
