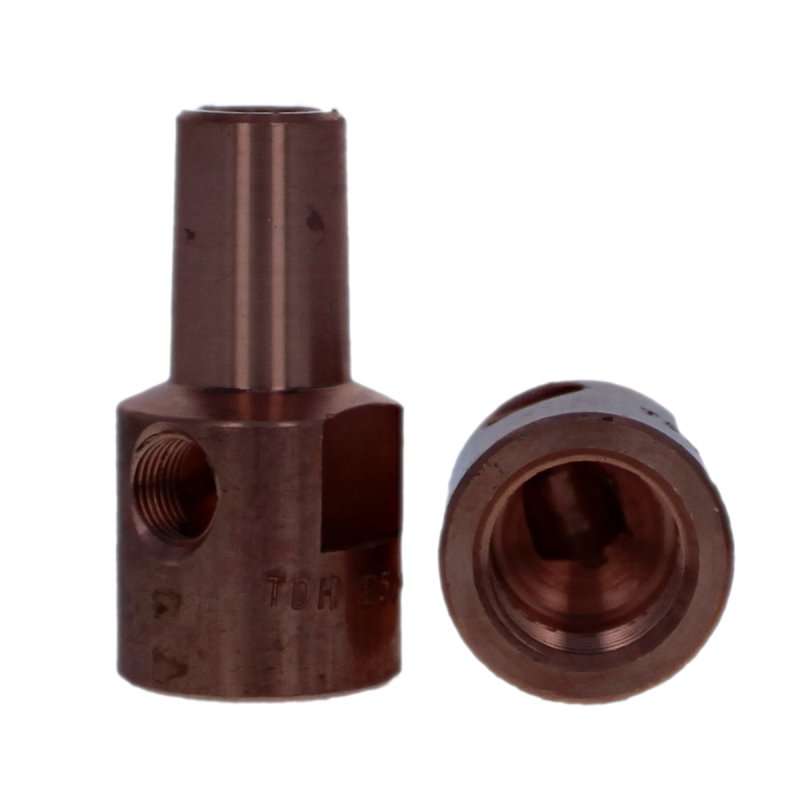

TDH-25C-THD (5/8-11 THD) BODY

TDH-25C-THD (5/8-11 THD) BODY

Part #: 301-0006

Request 3D Model

Request 3D Model


Metric Nut Bodies are a component of the Electrode Assembly for projection welding nuts. The body holds the Weld Head and Pin. The body has a port for an air line that keeps the pin extended when not under compression from the upper electrode and reduces weld slag build up around the pin.

RMWA Class 2 (C18200) material - a copper, chromium material recommend for high production operations spot welding hot or cold rolled steels, galvanized and coated materials.

  • The overall length is 2.130 IN
  • The outside diameter is 1.000 IN
  • The part mounts via 5/8-11 threads.
  • The part holds a subcomponent via M18 threads.
  • The part has a 1/8 NPT threaded port for an air line

Specifications

RWMA Material Type RWMA Class 2 - C18200
Engagement to Holder 5/8-11
Thread for Weld Head M18
Overall Length 2.13000
Outer Diameter 1.00000
Unit of Measure IN
Inlet for Airline 1/8 NPT
