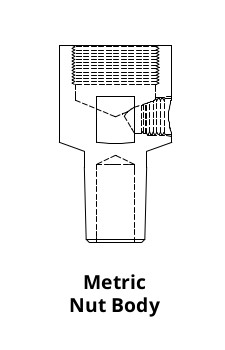

Metric Nut Bodies
Metric Nut Bodies are designed with a air port for controlling the pin and a threaded end to hold weld head. The part is available in multiple mounting (RWMA tapers an threaded) configurations for a wide range of design flexibility.
| Part | Description | RWMA Material Type | Engagement to Holder | Thread for Weld Head | Overall Length | Outer Diameter | Unit of Measure | Inlet for Airline |
|---|---|---|---|---|---|---|---|---|
| 301-0004 | TDH-25A BODY | RWMA Class 2 - C18200 | 4RW | M18 | 1.77000 | 1.00000 | IN | 1/8 NPT |
| 301-0005 | TDH-25C BODY | RWMA Class 2 - C18200 | 5RW | M18 | 1.97000 | 1.00000 | IN | 1/8 NPT |
| 301-0006 | TDH-25C-THD (5/8-11 THD) BODY | RWMA Class 2 - C18200 | 5/8-11 | M18 | 2.13000 | 1.00000 | IN | 1/8 NPT |
| 301-0015 | TDH-30A BODY | RWMA Class 2 - C18200 | 5RW | M22 | 1.97000 | 1.12500 | IN | 1/8 NPT |
| 301-0020 | TDH-35A BODY | RWMA Class 2 - C18200 | 5RW | M26 | 1.97000 | 1.25000 | IN | 1/8 NPT |
