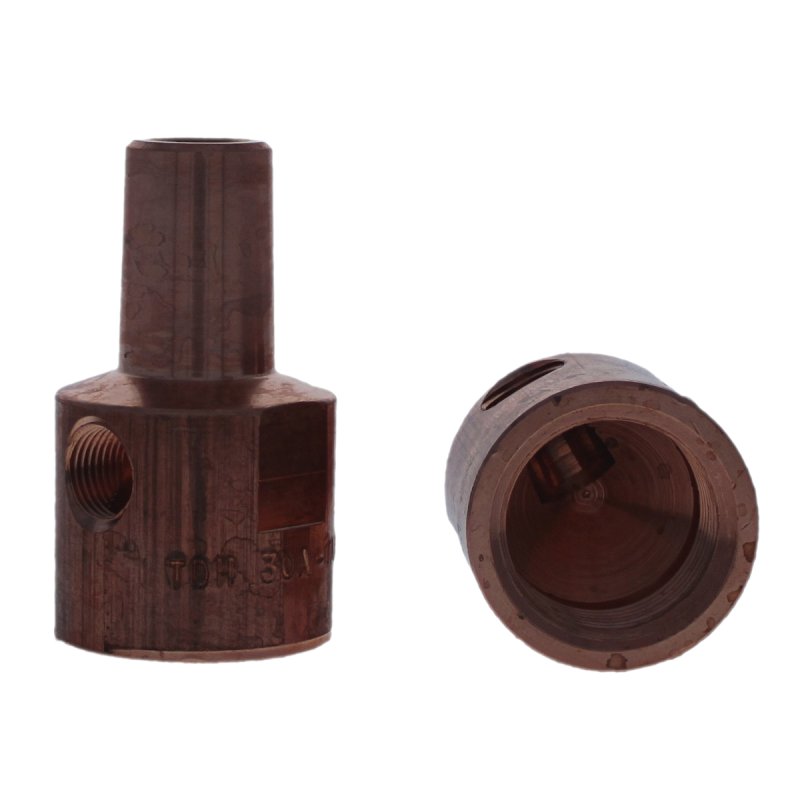

TDH-30A BODY

TDH-30A BODY

Part #: 301-0015

Request 3D Model

Request 3D Model


Metric Nut Bodies are a component of the Electrode Assembly for projection welding nuts. The body holds the Weld Head and Pin. The body has a port for an air line that keeps the pin extended when not under compression from the upper electrode and reduces weld slag build up around the pin.

RMWA Class 2 (C18200) material - a copper, chromium material recommend for high production operations spot welding hot or cold rolled steels, galvanized and coated materials.

  • The overall length is 1.970 IN
  • The outside diameter is 1.125 IN
  • The part mounts via a 5RW standard taper which is suitable for weld forces ranging between 800 to 1500 pounds of force.
  • The part holds a subcomponent via M22 threads.
  • The part has a 1/8 NPT threaded port for an air line

Specifications

RWMA Material Type RWMA Class 2 - C18200
Engagement to Holder 5RW
Thread for Weld Head M22
Overall Length 1.97000
Outer Diameter 1.12500
Unit of Measure IN
Inlet for Airline 1/8 NPT
