HD Non-Piloted-Nut Electrodes

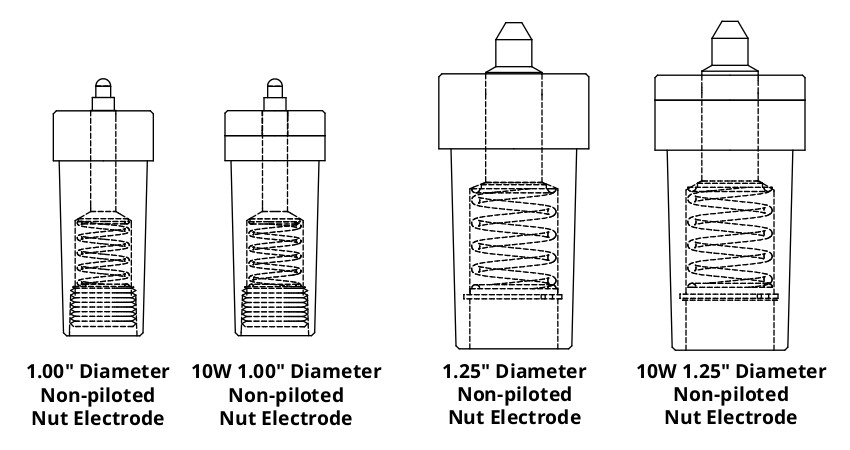

Tuffaloy Heavy Duty Non Plioted Nut Electrodes Header

Tuffaloy Heavy Duty Non-Piloted-Nut Electrodes have a spring-loaded pin so they can't interfere with the contacting of nut and sheet under welding pressure. The parts have an optional 10W weld face to improve the electrode life.

The Heavy Duty Non-Piloted Electrodes are designed for use with Tuffaloy's Heavy Duty Stud-Nut Holders which are suitable for high forces used for projection welding.

The parts have a large diameter taper available in two sizes:

  • HD Size 1 with a 1.00 IN diameter weld face
  • HD Size 2 with a 1.50 IN diameter weld face
PartDescription Face Refractory Material RWMA Material Type PM Style Engagement to Holder Body Length Weld Face Diameter Pin Diameter For Nut Size Refractory Metal Thickness Unit of Measure Spring
175-7091
709 (9mm) NON-PILOTED-NUT ELECT. RWMA Class 2 - C18200 HD Size 1 2.25000 1 0.3850 9 mm IN Yes
175-4791
479 NON-PILOTED-NUT ELECT. RWMA Class 2 - C18200 HD Size 2 2.75000 1.5 0.6870 9/16 IN Yes
175-4791-10W
479-10W NON-PILOTED-NUT ELECT. RWMA Class 11 - 10W RWMA Class 2 - C18200 HD Size 2 2.75000 1.5 0.6870 9/16 0.250 IN Yes
175-4801
480 NON-PILOTED-NUT ELECT. RWMA Class 2 - C18200 HD Size 2 2.75000 1.5 0.7500 5/8 IN Yes
175-4801-10W
480-10W NON-PILOTED-NUT ELECT. RWMA Class 11 - 10W RWMA Class 2 - C18200 HD Size 2 2.75000 1.5 0.7500 5/8 0.250 IN Yes
175-7061
706 (6mm) NON-PILOTED-NUT ELECT. RWMA Class 2 - C18200 HD Size 1 2.25000 1 0.2610 6 mm IN Yes
175-7061-10W
706-10W (6mm )NON-PILOTED-NUT ELECT. RWMA Class 11 - 10W RWMA Class 2 - C18200 HD Size 1 2.25000 1 0.2610 6 mm 0.250 IN Yes
175-7071
707 (7mm) NON-PILOTED-NUT ELECT. RWMA Class 2 - C18200 HD Size 1 2.25000 1 0.3000 7 mm IN Yes
175-7071-10W
707-10W (7mm ) NON-PILOTED-NUT ELECT. RWMA Class 11 - 10W RWMA Class 2 - C18200 HD Size 1 2.25000 1 0.3000 7 mm 0.250 IN Yes
175-4781-10W
478-10W NON-PILOTED-NUT ELECT. RWMA Class 11 - 10W RWMA Class 2 - C18200 HD Size 2 2.75000 1.5 0.6250 1/2 0.250 IN Yes
175-7091-10W
709-10W (9mm) NON-PILOTED-NUT ELECT. RWMA Class 11 - 10W RWMA Class 2 - C18200 HD Size 1 2.25000 1 0.3850 9 mm 0.250 IN Yes
175-7101
710 (10mm) NON-PILOT-NUT ELECT RWMA Class 2 - C18200 HD Size 1 2.25000 1 0.4250 10 mm IN Yes
175-7101-10W
710-10W (10mm) NON-PILOTED-NUT ELECT. RWMA Class 11 - 10W RWMA Class 2 - C18200 HD Size 1 2.25000 1 0.4250 10 mm 0.250 IN Yes
175-7102
710-2 (10mm) NON-PILOTED-NUT ELECT. RWMA Class 2 - C18200 HD Size 2 2.25000 1 0.4530 10 mm IN Yes
175-7102-10W
710-2-10W (10mm) NON-PILOTED-NUT ELECT. RWMA Class 11 - 10W RWMA Class 2 - C18200 HD Size 2 2.75000 1.5 0.4530 10 mm 0.250 IN Yes
175-7122
712-2 (12mm) NON-PILOTED-NUT ELECT. RWMA Class 2 - C18200 HD Size 2 2.75000 1.5 0.5950 12 mm IN Yes
175-7122-10W
712-2-10W (12mm) NON-PILOTED-NUT ELECT. RWMA Class 11 - 10W RWMA Class 2 - C18200 HD Size 2 2.75000 1.5 0.5950 12 mm 0.250 IN Yes
175-4251-10W
425-10W NON-PILOTED-NUT ELECT. RWMA Class 11 - 10W RWMA Class 2 - C18200 HD Size 1 2.25000 1 0.3450 5/16 (8mm) 0.250 IN Yes
175-4211-10W
421-10W NON-PILOTED-NUT ELECT. RWMA Class 11 - 10W RWMA Class 2 - C18200 HD Size 1 2.25000 1 0.1800 #8 0.250 IN Yes
175-4221
422 NON-PILOTED-NUT ELECT. RWMA Class 2 - C18200 HD Size 1 2.25000 1 0.2150 #10 IN Yes
175-4221-10W
422-10W NON-PILOTED-NUT ELECT. RWMA Class 11 - 10W RWMA Class 2 - C18200 HD Size 1 2.25000 1 0.2150 #10 0.250 IN Yes
175-4231
423 NON-PILOTED-NUT ELECT. RWMA Class 2 - C18200 HD Size 1 2.25000 1 0.2400 #12 IN Yes
175-4231-10W
423-10W NON-PILOTED-NUT ELECT. RWMA Class 11 - 10W RWMA Class 2 - C18200 HD Size 1 2.25000 1 0.2400 #12 0.250 IN Yes
175-4241
424 NON-PILOTED-NUT ELECT. RWMA Class 2 - C18200 HD Size 1 2.25000 1 0.2750 1/4 IN Yes
175-4241-10W
424-10W NON-PILOTED-NUT ELECT. RWMA Class 11 - 10W RWMA Class 2 - C18200 HD Size 1 2.25000 1 0.2750 1/4 0.250 IN Yes
175-4251
425 NON-PILOTED-NUT ELECT. RWMA Class 2 - C18200 HD Size 1 2.25000 1 0.3450 5/16 (8mm) IN Yes
175-4211
421 NON-PILOTED-NUT ELECT. RWMA Class 2 - C18200 HD Size 1 2.25000 1 0.1800 #8 IN Yes
175-4261
426 NON-PILOTED-NUT ELECT. RWMA Class 2 - C18200 HD Size 1 2.25000 1 0.4050 3/8 IN Yes
175-4261-10W
426-10W NON-PILOTED-NUT ELECT. RWMA Class 11 - 10W RWMA Class 2 - C18200 HD Size 1 2.25000 1 0.4050 3/8 0.250 IN Yes
175-4761
476 NON-PILOTED-NUT ELECT. RWMA Class 2 - C18200 HD Size 2 2.75000 1.5 0.4370 3/8 IN Yes
175-4761-10W
476-10W NON-PILOTED-NUT ELECT. RWMA Class 11 - 10W RWMA Class 2 - C18200 HD Size 2 2.75000 1.5 0.4370 3/8 0.250 IN Yes
175-4771
477 NON-PILOTED-NUT ELECT. RWMA Class 2 - C18200 HD Size 2 2.75000 1.5 0.5620 7/16 IN Yes
175-4771-10W
477-10W NON-PILOTED-NUT ELECT. RWMA Class 11 - 10W RWMA Class 2 - C18200 HD Size 2 2.75000 1.5 0.5620 7/16 0.250 IN Yes
175-4781
478 NON-PILOTED-NUT ELECT. RWMA Class 2 - C18200 HD Size 2 2.75000 1.5 0.6250 1/2 IN Yes
