HD Self-Piloted-Nut Electrodes

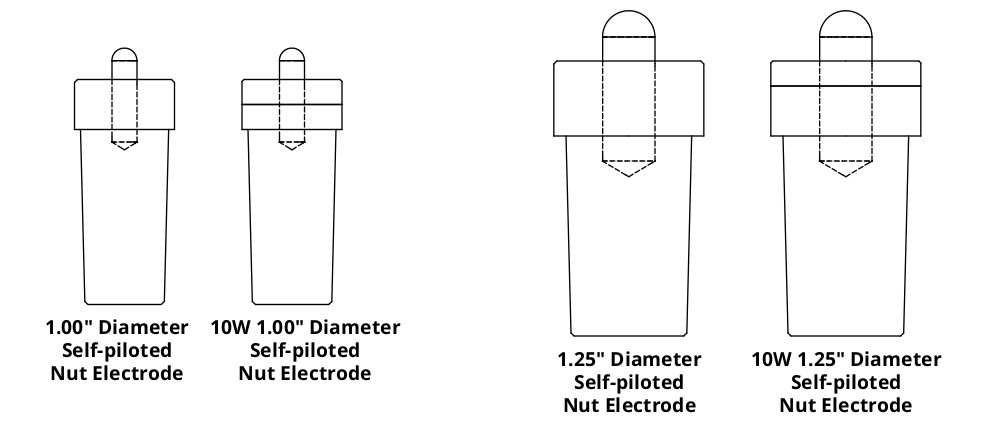

Tuffaloy Heavy Duty Self Piloted Nut Electrodes Header

Tuffaloy Heavy Duty Self-Piloted-Nut Electrodes have a fixed pin for positioning the nut during welding. The parts have an optional 10W weld face to improve the electrode life.

The Heavy Duty Self-Piloted-Nut Electrodes are designed for use with Tuffaloy's Heavy Duty Stud-Nut Holders which are suitable for high forces used for projection welding.

The parts have a large diameter taper available in two sizes:

  • HD Size 1 with a 1.00 IN diameter weld face
  • HD Size 2 with a 1.50 IN diameter weld face
Part Description Face Refractory Material RWMA Material Type PM Style Engagement to Holder Body Length Weld Face Diameter Pin Diameter Pin Height For Nut Size Refractory Metal Thickness Unit of Measure
175-6061-10W
606-10W (6mm) SELF-PILOTED-NUT ELECT. RWMA Class 11 - 10W RWMA Class 2 - C18200 HD Size 1 2.25000 1 0.1760 0.2500 6 mm 0.250 IN
175-4591
459 SELF-PILOTED-NUT ELECT. RWMA Class 2 - C18200 HD Size 2 2.75000 1.5 0.4720 0.4375 9/16 IN
175-4591-10W
459-10W SELF-PILOTED-NUT ELECT. RWMA Class 11 - 10W RWMA Class 2 - C18200 HD Size 2 2.75000 1.5 0.4720 0.4375 9/16 0.250 IN
175-4601
460 SELF-PILOTED-NUT ELECT. RWMA Class 2 - C18200 HD Size 2 2.75000 1.5 0.5220 0.5000 5/8 IN
175-4601-10W
460-10W SELF-PILOTED-NUT ELECT. RWMA Class 11 - 10W RWMA Class 2 - C18200 HD Size 2 2.75000 1.5 0.5220 0.5000 5/8 0.250 IN
175-4611
461 SELF-PILOTED-NUT ELECT. RWMA Class 2 - C18200 HD Size 2 2.75000 1.5 0.6000 0.5000 11/16 IN
175-4621
462 SELF-PILOTED-NUT ELECT. RWMA Class 2 - C18200 HD Size 2 2.75000 1.5 0.6250 3/4 IN
175-4621-10W
462-10W SELF-PILOTED-NUT ELECT. RWMA Class 11 - 10W RWMA Class 2 - C18200 HD Size 2 2.75000 1.5 0.6250 3/4 0.250 IN
175-6061
606 (6mm) SELF-PILOTED-NUT ELECT. RWMA Class 2 - C18200 HD Size 1 2.25000 1 0.1760 0.2500 6 mm IN
175-4581-10W
458-10W SELF-PILOTED-NUT ELECT. RWMA Class 11 - 10W RWMA Class 2 - C18200 HD Size 2 2.75000 1.5 0.4125 0.4375 1/2 0.250 IN
175-6071
607 (7mm) SELF-PILOTED-NUT ELECT. RWMA Class 2 - C18200 HD Size 1 2.25000 1 0.2160 0.3125 7 mm IN
175-6091
609 (9mm) SELF-PILOTED-NUT ELECT. RWMA Class 2 - C18200 HD Size 1 2.25000 1 0.2780 0.3750 9 mm IN
175-6091-10W
609-10W (9mm) SELF-PILOTED-NUT ELECT. RWMA Class 11 - 10W RWMA Class 2 - C18200 HD Size 1 2.25000 1 0.2780 0.3750 9 mm 0.250 IN
175-6101
610 (10mm) SELF-PILOTED-NUT ELECT. RWMA Class 2 - C18200 HD Size 1 2.25000 1 0.3750 10 mm IN
175-6101-10W
610-10W (10mm) SELF-PILOTED-NUT ELECT. RWMA Class 11 - 10W RWMA Class 2 - C18200 HD Size 1 2.25000 1 0.3750 10 mm 0.250 IN
175-6102
610-2 (10mm) SELF-PILOTED-NUT ELECT. RWMA Class 2 - C18200 HD Size 1 2.25000 1 0.3750 10 mm IN
175-6122
612-2 (12mm) SELF-PILOTED-NUT ELECT. RWMA Class 2 - C18200 HD Size 2 2.75000 1.5 0.4375 12 mm IN
175-6122-10W
612-2-10W (10mm) SELF-PILOTED-NUT ELECT. RWMA Class 11 - 10W RWMA Class 2 - C18200 HD Size 2 2.75000 1.5 0.4375 12 mm 0.250 IN
175-4151-10W
415-10W SELF-PILOTED-NUT ELECT. RWMA Class 11 - 10W RWMA Class 2 - C18200 HD Size 1 2.25000 1 0.2500 0.3125 5/16 (8mm) 0.250 IN
175-4111-10W
411-10W SELF-PILOTED-NUT ELECT. RWMA Class 11 - 10W RWMA Class 2 - C18200 HD Size 1 2.25000 1 0.1250 0.1875 #8 0.250 IN
175-4121
412 SELF-PILOTED-NUT ELECT. RWMA Class 2 - C18200 HD Size 1 2.25000 1 0.1520 0.1875 #10 IN
175-4121-10W
412-10W SELF-PILOTED-NUT ELECT. RWMA Class 11 - 10W RWMA Class 2 - C18200 HD Size 1 2.25000 1 0.1520 0.1875 #10 0.250 IN
175-4131
413 SELF-PILOTED-NUT ELECT. RWMA Class 2 - C18200 HD Size 1 2.25000 1 0.1770 0.2500 #12 IN
175-4131-10W
413-10W SELF-PILOTED-NUT ELECT. RWMA Class 11 - 10W RWMA Class 2 - C18200 HD Size 1 2.25000 1 0.1770 0.2500 #12 0.250 IN
175-4141
414 SELF-PILOTED-NUT ELECT. RWMA Class 2 - C18200 HD Size 1 2.25000 1 0.1900 0.3125 1/4 IN
175-4141-10W
414-10W SELF-PILOTED-NUT ELECT. RWMA Class 11 - 10W RWMA Class 2 - C18200 HD Size 1 2.25000 1 0.1900 0.3125 1/4 0.250 IN
175-4151
415 SELF-PILOTED-NUT ELECT. RWMA Class 2 - C18200 HD Size 1 2.25000 1 0.2500 0.3125 5/16 (8mm) IN
175-4111
411 SELF-PILOTED-NUT ELECT. RWMA Class 2 - C18200 HD Size 1 2.25000 1 0.1250 0.1875 #8 IN
175-4161
416 SELF-PILOTED-NUT ELECT. RWMA Class 2 - C18200 HD Size 1 2.25000 1 0.3020 0.3750 3/8 IN
175-4161-10W
416-10W SELF-PILOTED-NUT ELECT. RWMA Class 11 - 10W RWMA Class 2 - C18200 HD Size 1 2.25000 1 0.3020 0.3750 3/8 0.250 IN
175-4561
456 SELF-PILOTED-NUT ELECT. RWMA Class 2 - C18200 HD Size 2 2.75000 1.5 0.3020 0.3750 3/8 IN
175-4561-10W
456-10W SELF-PILOTED-NUT ELECT. RWMA Class 11 - 10W RWMA Class 2 - C18200 HD Size 2 2.75000 1.5 0.3020 0.3750 3/8 0.250 IN
175-4571
457 SELF-PILOTED-NUT ELECT. RWMA Class 2 - C18200 HD Size 2 2.75000 1.5 0.3600 0.3750 7/16 IN
175-4571-10W
457-10W SELF-PILOTED-NUT ELECT. RWMA Class 11 - 10W RWMA Class 2 - C18200 HD Size 2 2.75000 1.5 0.3600 0.3750 7/16 0.250 IN
175-4581
458 SELF-PILOTED-NUT ELECT. RWMA Class 2 - C18200 HD Size 2 2.75000 1.5 0.4125 0.4375 1/2 IN
