HD Stud-Nut Offset Holders

Tuffaloy HD Nut Stud Offset Holder Header

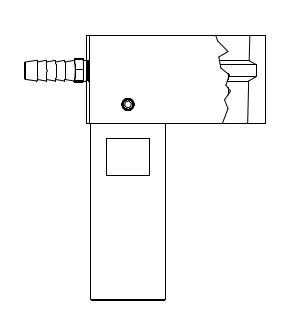

Tuffaloy Heavy Duty Stud and Nut Offset Holder allow for use of the heavy duty stud and nut electrodes in tight locations and to reach around obstacles.

The Heavy Duty Stud and Nut Offset Holder is designed for use with Tuffaloy's Heavy Duty Stud-Nut Electrodes which are suitable for high forces used for projection welding.

The parts have a large diameter taper available in two sizes:

  • HD Size 1 with a 1.00 IN diameter weld face
  • HD Size 2 with a 1.50 IN diameter weld face
Part Description RWMA Material Type Barrel Diameter Electrode Socket Dia. Overall Length Offset Barrel Length Unit of Measure
350-4540
4540 S&N HOLDER OFFSET RWMA Class 2 1 HD Size 1 5.62500 2.0000 3.625 IN
350-4541
4541 S&N HOLDER OFFSET RWMA Class 2 1.25 HD Size 1 5.62500 2.0000 3.625 IN
350-4542
4542 S&N HOLDER OFFSET RWMA Class 2 1.5 HD Size 1 5.62500 2.0000 3.625 IN
350-4546
4546 S&N HOLDER OFFSET RWMA Class 2 1.25 HD Size 2 5.62500 2.0000 3.625 IN
350-4547
4547 S&N HOLDER OFFSET8 RWMA Class 2 1.5 HD Size 2 5.62500 2.0000 3.625 IN
4540 S&N HOLDER OFFSET 4541 S&N HOLDER OFFSET 4542 S&N HOLDER OFFSET 4546 S&N HOLDER OFFSET 4547 S&N HOLDER OFFSET8
