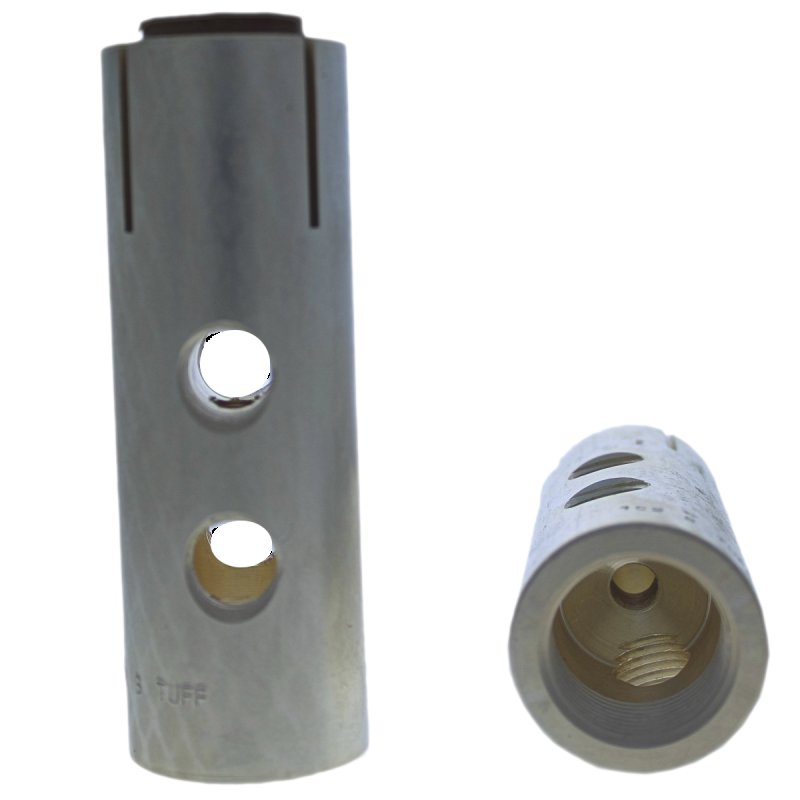

102-B DOUBLE PORT BARREL
Part #: 194-2075
Request 3D Model
Cylinder Mounted Straight Barrel Holders are designed to mount directly to air or hydraulic acutators making them ideal for multi-head resistance welding equipment. The replaceable threaded adapter and water tube can be sized to the application and insure proper water flow to the tips.
RMWA Class 2 material is high conductivity and high strength alloy recommended for structural, current carrying secondary components and electrode holders. This is a heat treatable alloy used in the fully heat treated condition.
- The overall length is 3.930 IN
- The outside diameter for mounting to clamp is 1.375 IN
- The part holds a subcomponent via 3/4 - 14 NPT threads.
- The water port orientation is In Line 1, 2, 3 & 4
- The water in port location is 2.188 IN from the base
- The water out port location is 1.188 IN from the base
|RWMA Material Type||RWMA Class 2|
|Thread Type||3/4 - 14 NPT|
|Unit of Measure||IN|
|Water Port Orientation||In Line 1, 2, 3 & 4|
