Straight Barrel Holders

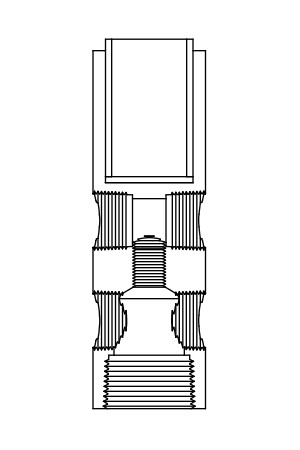

Tuffaloy Cylinder Mounted Straight Holder

Cylinder Mounted Straight Barrel Holders are designed to mount directly to air or hydraulic acutators making them ideal for multi-head resistance welding equipment. The replaceable threaded adapter and water tube can be sized to the application and insure proper water flow to the tips.

PartDescription RWMA Material Type Thread Type Overall Length Clamping Diameter Water Out Water In Unit of Measure Water Port Orientation
194-2020
101-A BARREL RWMA Class 2 1/2 - 14 NPT 3.58000 1.12500 0.8750 1.8750 IN In Line 1 & 2
194-2025
101-B BARREL RWMA Class 2 1/2 - 14 NPT 3.58000 1.12500 0.8750 1.8750 IN In Line 1, 2, 3 & 4
194-2026
SH-101-1 BARREL RWMA Class 2 1/2 - 14 NPT 3.25000 1.12500 0.8750 1.6250 IN In Line 1, 2, 3 & 4
194-2070
102-A SINGLE PORT BARREL RWMA Class 2 3/4 - 14 NPT 3.93000 1.37500 1.1875 2.1875 IN In Line 1 & 2
194-2075
102-B DOUBLE PORT BARREL RWMA Class 2 3/4 - 14 NPT 3.93000 1.37500 1.1875 2.1875 IN In Line 1, 2, 3 & 4
194-2080
103-A SINGLE PORT 7/8"-14 RWMA Class 2 7/8 - 14 3.58000 1.12500 1.0625 1.8750 IN In Line 1 & 2
194-2081
103-B DUAL PORT 7/8"-14 RWMA Class 2 7/8 - 14 3.58000 1.12500 1.0625 1.8750 IN In Line 1, 2, 3 & 4 Offset 20 degrees
194-2082
653-1036 RWMA Class 2 7/8 - 14 3.58000 1.12500 1.0625 1.8750 IN In Line 1 & 2 Offset 20 degrees
194-2085
SH-102-B 1"-12 THD (4887) RWMA Class 2 1 - 12 3.93000 1.37500 1.1875 2.1875 IN In Line 1, 2, 3 & 4
101-A BARREL 101-B BARREL SH-101-1 BARREL 102-A SINGLE PORT BARREL 102-B DOUBLE PORT BARREL 103-A SINGLE PORT 7/8"-14 103-B DUAL PORT 7/8"-14 653-1036 SH-102-B 1"-12 THD (4887)
