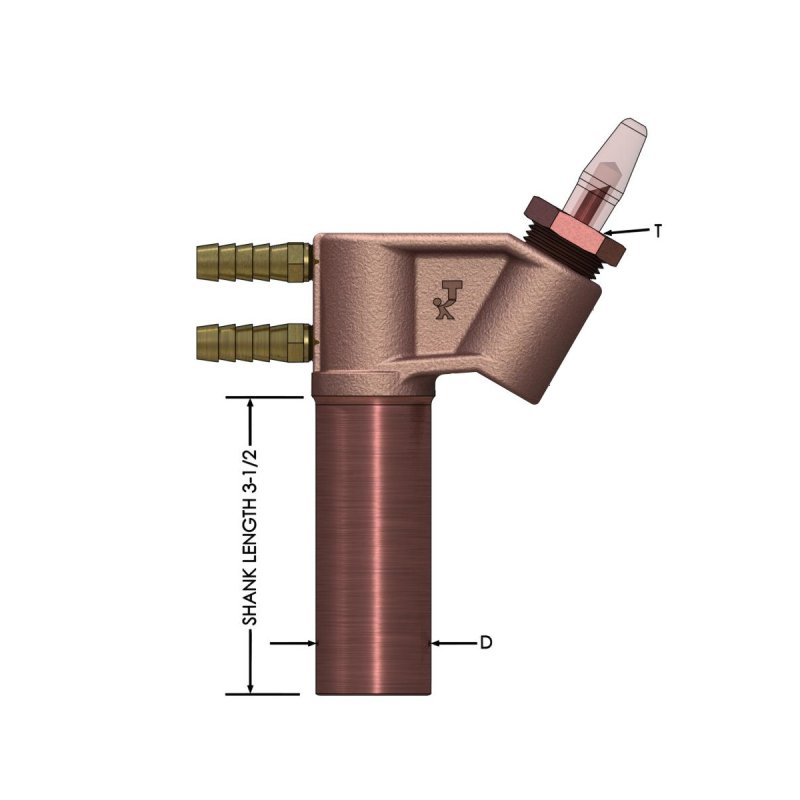

ON-155-230 OFFSET HOLDER
Part #: 335-1250
Request 3D Model
Standard Offset holders are designed to optimize tool life. The holder comes with a threaded electrode adapter which can be replaced when the taper wears out. These holders are commonly used with Rocker Arm and Pedestal Type welders.
RMWA Class 2 material is high conductivity and high strength alloy recommended for structural, current carrying secondary components and electrode holders. This is a heat treatable alloy used in the fully heat treated condition.
- The mounting shank length is 3.500 IN
- The mounting shank diameter is 1.5 IN
- The part holds a subcomponent via a 5RW standard taper which is suitable for weld forces ranging between 800 to 1500 pounds of force.
- The offset is 2 IN
- The engagement angle is 30 Degrees
|RWMA Material||RWMA Class 2|
|Adapter Tip Socket (RWMA Taper)||5RW|
|Unit of Measure||IN|
