Offset Holders

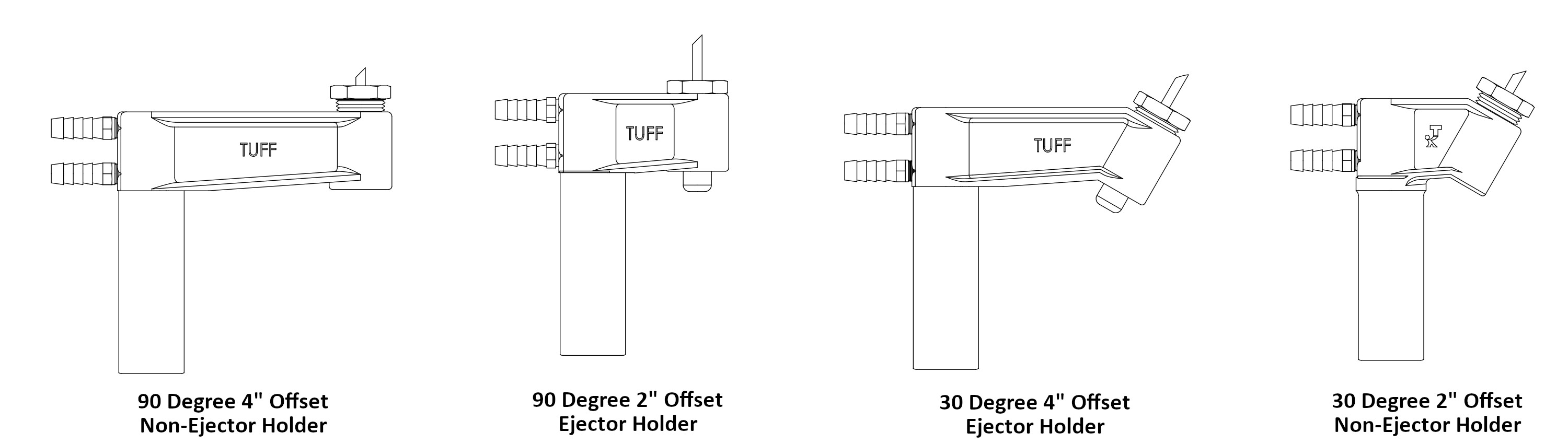

Tuffaloy Standard Offset Holders Header

Standard Offset holders are designed to optimize tool life. The holder comes with a threaded electrode adapter which can be replaced when the taper wears out. These holders are commonly used with Rocker Arm and Pedestal Type welders.

The offset holders are:

  • available with offsets of 2 inches or 4 inches
  • available with a 90 degree or 30 degree engagement angle
  • available with an ejector buttor for easy removal of the electrode
  • available in five different shank diameters to accomodate different weld forces
PartDescription RWMA Material Shank Diameter Adapter Tip Socket (RWMA Taper) Offset Shank Length Unit of Measure Socket Angle Ejector Type
335-0010
OE-14-290 OFFSET HOLDER RWMA Class 3 1 4RW 2.0000 3.500 IN 90.0 Yes
335-0020
OE-14-430 OFFSET HOLDER RWMA Class 3 1 4RW 4.0000 3.500 IN 30.0 Yes
335-0030
OE-14-490 OFFSET HOLDER RWMA Class 3 1 4RW 4.0000 3.500 IN 90.0 Yes
335-0060
OE-15-290 OFFSET HOLDER RWMA Class 3 1 5RW 2.0000 3.500 IN 90.0 Yes
335-0070
OE-15-430 OFFSET HOLDER RWMA Class 3 1 5RW 4.0000 3.500 IN 30.0 Yes
335-0080
OE-15-490 OFFSET HOLDER RWMA Class 3 1 5RW 4.0000 3.500 IN 90.0 Yes
335-0110
OE-1254-290 OFFSET HOLDER RWMA Class 3 1.25 4RW 2.0000 3.500 IN 90.0 Yes
335-0120
OE-1254-430 OFFSET HOLDER RWMA Class 3 1.25 4RW 4.0000 3.500 IN 30.0 Yes
335-0130
OE-1254-490 OFFSET HOLDER RWMA Class 3 1.25 4RW 4.0000 3.500 IN 90.0 Yes
335-0160
OE-1255-290 OFFSET HOLDER RWMA Class 3 1.25 5RW 2.0000 3.500 IN 90.0 Yes
335-0170
OE-1255-430 OFFSET HOLDER RWMA Class 3 1.25 5RW 4.0000 3.500 IN 30.0 Yes
335-0180
OE-1255-490 OFFSET HOLDER RWMA Class 3 1.25 5RW 4.0000 3.500 IN 90.0 Yes
335-0210
OE-154-290 OFFSET HOLDER RWMA Class 3 1.5 4RW 2.0000 3.500 IN 90.0 Yes
335-0220
OE-154-430 OFFSET HOLDER RWMA Class 3 1.5 4RW 4.0000 3.500 IN 30.0 Yes
335-0230
OE-154-490 OFFSET HOLDER RWMA Class 3 1.5 4RW 4.0000 3.500 IN 90.0 Yes
335-0260
OE-155-290 OFFSET HOLDER RWMA Class 3 1.5 5RW 2.0000 3.500 IN 90.0 Yes
335-0270
OE-155-430 OFFSET HOLDER RWMA Class 3 1.5 5RW 4.0000 3.500 IN 30.0 Yes
335-0280
OE-155-490 OFFSET HOLDER RWMA Class 3 1.5 5RW 4.0000 3.500 IN 90.0 Yes
335-0310
OE-754-290 OFFSET HOLDER RWMA Class 3 0.75 4RW 2.0000 3.500 IN 90.0 Yes
335-0320
OE-754-430 OFFSET HOLDER RWMA Class 3 0.75 4RW 4.0000 3.500 IN 30.0 Yes
335-0330
OE-754-490 OFFSET HOLDER RWMA Class 3 0.75 4RW 4.0000 3.500 IN 90.0 Yes
335-0360
OE-755-290 OFFSET HOLDER RWMA Class 3 0.75 5RW 2.0000 3.500 IN 90.0 Yes
335-0370
OE-755-430 OFFSET HOLDER RWMA Class 3 0.75 5RW 4.0000 3.500 IN 30.0 Yes
335-0380
OE-755-490 OFFSET HOLDER RWMA Class 3 0.75 5RW 4.0000 3.500 IN 90.0 Yes
335-0410
OE-874-290 OFFSET HOLDER RWMA Class 3 0.875 4RW 2.0000 3.500 IN 90.0 Yes
335-0420
OE-874-430 OFFSET HOLDER RWMA Class 3 0.875 4RW 4.0000 3.500 IN 30.0 Yes
335-0430
OE-874-490 OFFSET HOLDER RWMA Class 3 0.875 4RW 4.0000 3.500 IN 90.0 Yes
335-0460
OE-875-290 OFFSET HOLDER RWMA Class 3 0.875 5RW 2.0000 3.500 IN 90.0 Yes
335-0470
OE-875-430 OFFSET HOLDER RWMA Class 3 0.875 5RW 4.0000 3.500 IN 30.0 Yes
335-0480
OE-875-490 OFFSET HOLDER RWMA Class 3 0.875 5RW 4.0000 3.500 IN 90.0 Yes
335-1000
ON-14-230 OFFSET HOLDER RWMA Class 3 1 4RW 2.0000 3.500 IN 30.0 No
335-1010
ON-14-290 OFFSET HOLDER RWMA Class 3 1 4RW 2.0000 3.500 IN 90.0 No
335-1020
ON-14-430 OFFSET HOLDER RWMA Class 3 1 4RW 4.0000 3.500 IN 30.0 No
335-1030
ON-14-490 OFFSET HOLDER RWMA Class 3 1 4RW 4.0000 3.500 IN 90.0 No
335-1050
ON-15-230 OFFSET HOLDER RWMA Class 3 1 5RW 2.0000 3.500 IN 30.0 No
335-1060
ON-15-290 OFFSET HOLDER RWMA Class 3 1 5RW 2.0000 3.500 IN 90.0 No
335-1070
ON-15-430 OFFSET HOLDER RWMA Class 3 1 5RW 4.0000 3.500 IN 30.0 No
335-1080
ON-15-490 OFFSET HOLDER RWMA Class 3 1 5RW 4.0000 3.500 IN 90.0 No
335-1100
ON-1254-230 OFFSET HOLDER RWMA Class 3 1.25 4RW 4.0000 3.500 IN 30.0 No
335-1110
ON-1254-290 OFFSET HOLDER RWMA Class 3 1.25 4RW 4.0000 3.500 IN 90.0 No
335-1120
ON-1254-430 OFFSET HOLDER RWMA Class 3 1.25 4RW 4.0000 3.500 IN 30.0 No
335-1130
ON-1254-490 OFFSET HOLDER RWMA Class 3 1.25 4RW 4.0000 3.500 IN 90.0 No
335-1150
ON-1255-230 OFFSET HOLDER RWMA Class 3 1.25 5RW 2.0000 3.500 IN 30.0 No
335-1160
ON-1255-290 OFFSET HOLDER RWMA Class 3 1.25 5RW 2.0000 3.500 IN 90.0 No
335-1170
ON-1255-430 OFFSET HOLDER RWMA Class 3 1.25 5RW 4.0000 3.500 IN 30.0 No
335-1180
ON-1255-490 OFFSET HOLDER RWMA Class 3 1.25 5RW 4.0000 3.500 IN 90.0 No
335-1200
ON-154-230 OFFSET HOLDER RWMA Class 3 1.5 4RW 2.0000 3.500 IN 30.0 No
335-1210
ON-154-290 OFFSET HOLDER RWMA Class 3 1.5 4RW 2.0000 3.500 IN 90.0 No
335-1220
ON-154-430 OFFSET HOLDER RWMA Class 3 1.5 4RW 4.0000 3.500 IN 30.0 No
335-1230
ON-154-490 OFFSET HOLDER RWMA Class 3 1.5 4RW 4.0000 3.500 IN 90.0 No
335-1250
ON-155-230 OFFSET HOLDER RWMA Class 3 1.5 5RW 2.0000 3.500 IN 30.0 No
335-1260
ON-155-290 OFFSET HOLDER RWMA Class 3 1.5 5RW 2.0000 3.500 IN 90.0 No
335-1270
ON-155-430 OFFSET HOLDER RWMA Class 3 1.5 5RW 4.0000 3.500 IN 30.0 No
335-1280
ON-155-490 OFFSET HOLDER RWMA Class 3 1.5 5RW 4.0000 3.500 IN 90.0 No
335-1300
ON-754-230 OFFSET HOLDER RWMA Class 3 0.75 4RW 2.0000 3.500 IN 30.0 No
335-1310
ON-754-290 OFFSET HOLDER RWMA Class 3 0.75 4RW 2.0000 3.500 IN 90.0 No
335-1320
ON-754-430 OFFSET HOLDER RWMA Class 3 0.75 4RW 4.0000 3.500 IN 30.0 No
335-1330
ON-754-490 OFFSET HOLDER RWMA Class 3 0.75 4RW 4.0000 3.500 IN 90.0 No
335-1350
ON-755-230 OFFSET HOLDER RWMA Class 3 0.75 5RW 2.0000 3.500 IN 30.0 No
335-1360
ON-755-290 OFFSET HLD. RWMA Class 3 0.75 5RW 2.0000 3.500 IN 90.0 No
335-1370
ON-755-430 OFFSET HOLDER RWMA Class 3 0.75 5RW 4.0000 3.500 IN 30.0 No
335-1380
ON-755-490 OFFSET HOLDER RWMA Class 3 0.75 5RW 4.0000 3.500 IN 90.0 No
335-1400
ON-874-230 OFFSET HOLDER RWMA Class 3 0.875 4RW 2.0000 3.500 IN 30.0 No
335-1410
ON-874-290 OFFSET HOLER RWMA Class 3 0.875 4RW 2.0000 3.500 IN 90.0 No
335-1420
ON-874-430 OFFSET HOLDER RWMA Class 3 0.875 4RW 4.0000 3.500 IN 30.0 No
335-1430
ON-874-490 OFFSET HOLDER RWMA Class 3 0.875 4RW 4.0000 3.500 IN 90.0 No
335-1450
ON-875-230 OFFSET HOLDER RWMA Class 3 0.875 5RW 2.0000 3.500 IN 30.0 No
335-1460
ON-875-290 OFFSET HOLDER RWMA Class 3 0.875 5RW 2.0000 3.500 IN 90.0 No
335-1470
ON-875-430 OFFSET HOLDER RWMA Class 3 0.875 5RW 4.0000 3.500 IN 30.0 No
335-1480
ON-875-490 OFFSET HOLDER RWMA Class 3 0.875 5RW 4.0000 3.500 IN 90.0 No
