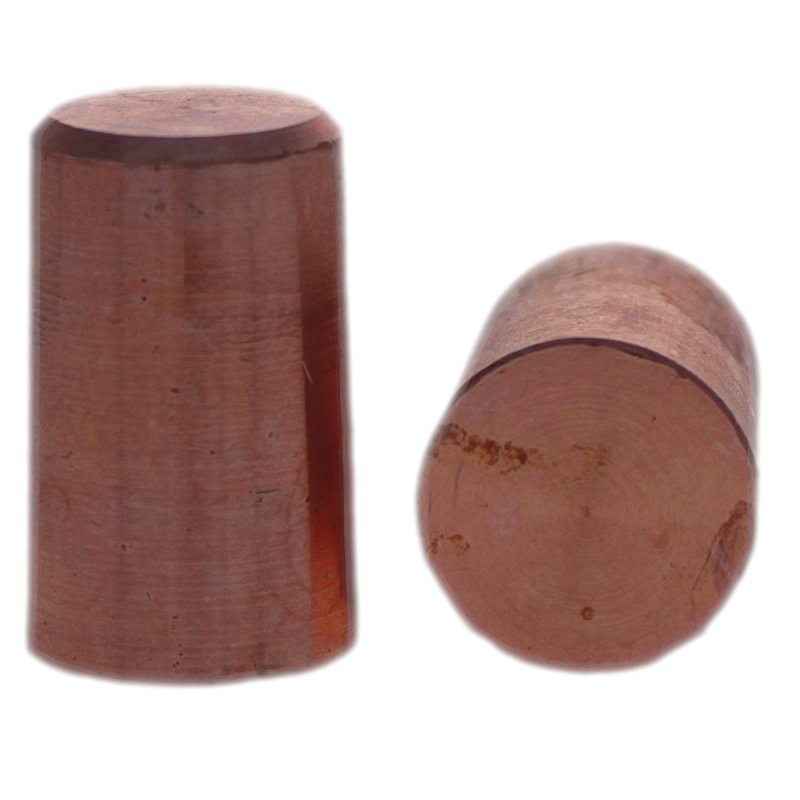

SE-3249 PADDLE TIP

SE-3249 PADDLE TIP

Part #: 170-3249

Request 3D Model

Request 3D Model


Heavy Duty Paddle Tips are designed for use with Heavy Duty Paddle Holders. Their low profile design is ideal for welding in tight spaces.

RMWA Class 2 (C18200) material - a copper, chromium material recommend for high production operations spot welding hot or cold rolled steels, galvanized and coated materials.

  • The overall length is 0.7500 IN
  • The outside diameter is 0.482 IN
  • The part mounts via a 4RW standard taper which is suitable for weld forces ranging between 200 to 800 pounds of force.
  • The C nose of Flat face tip is frequently used as a backup electrode for projection welding, cosmetic welds, or to control heat balancing of the weld by controlling the current density.
  • The weld face is 0.462 IN

Specifications

RWMA Material Type RWMA Class 2 - C18200
RWMA Taper 4RW
Nose Type C
Overall Length 0.75000
Diameter 0.48200
Welding Face Dia. 0.4625
Unit of Measure IN
