Heavy Duty Paddle Tips
Heavy Duty Paddle Tips are designed for use with Heavy Duty Paddle Holders. Their low profile design is ideal for welding in tight spaces or hard to reach locations.

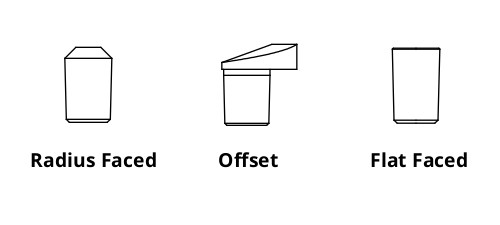

| Part | Description | RWMA Material Type | RWMA Taper | Nose Type | Overall Length | Diameter | Welding Face Dia. | Unit of Measure | Offset / Truncated Angle |
|---|---|---|---|---|---|---|---|---|---|
| 186-0522 | SE-6332 TIP | RWMA Class 2 - C18200 | 5RW Cap Taper | E | 0.69000 | 0.62500 | 0.25 | IN | 15.0 |
| 186-0523 | SE-6296 TIP | RWMA Class 2 - C18200 | 5RW Cap Taper | C | 0.69000 | 0.62500 | 0.625 | IN | |
| 170-3247 | SE-3247 PADDLE TIP | RWMA Class 2 - C18200 | 4RW | E | 0.75000 | 0.48200 | 0.25 | IN | 45.0 |
| 170-3248 | SE-3248 PADDLE TIP | RWMA Class 2 - C18200 | 4RW | D | 0.81000 | 0.75000 | 0.25 | IN | 20.0 |
| 170-3249 | SE-3249 PADDLE TIP | RWMA Class 2 - C18200 | 4RW | C | 0.75000 | 0.48200 | 0.4625 | IN |
