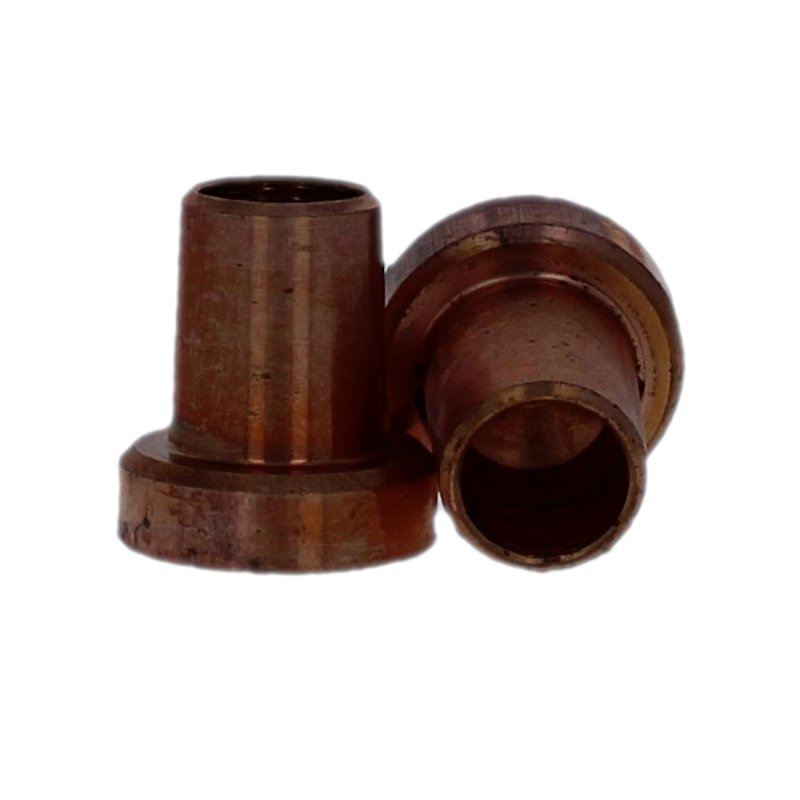

SE-6296 TIP
Part #: 186-0523
Request 3D Model
Heavy Duty Paddle Tips are designed for use with Heavy Duty Paddle Holders. Their low profile design is ideal for welding in tight spaces.
RMWA Class 2 (C18200) material - a copper, chromium material recommend for high production operations spot welding hot or cold rolled steels, galvanized and coated materials.
- The overall length is 0.6900 IN
- The outside diameter is 0.625 IN
- The part mounts via a 5RW cap taper which is suitable for weld forces ranging between 800 to 1500 pounds of force.
- The C nose of Flat face tip is frequently used as a backup electrode for projection welding, cosmetic welds, or to control heat balancing of the weld by controlling the current density.
- The weld face is 0.625 IN
Specifications
RWMA Material Type | RWMA Class 2 - C18200 |
---|---|
RWMA Taper | 5RW Cap Taper |
Nose Type | C |
Overall Length | 0.69000 |
Diameter | 0.62500 |
Welding Face Dia. | 0.625 |
Unit of Measure | IN |
