SE-6332 TIP

Part #: 186-0522

Request 3D Model

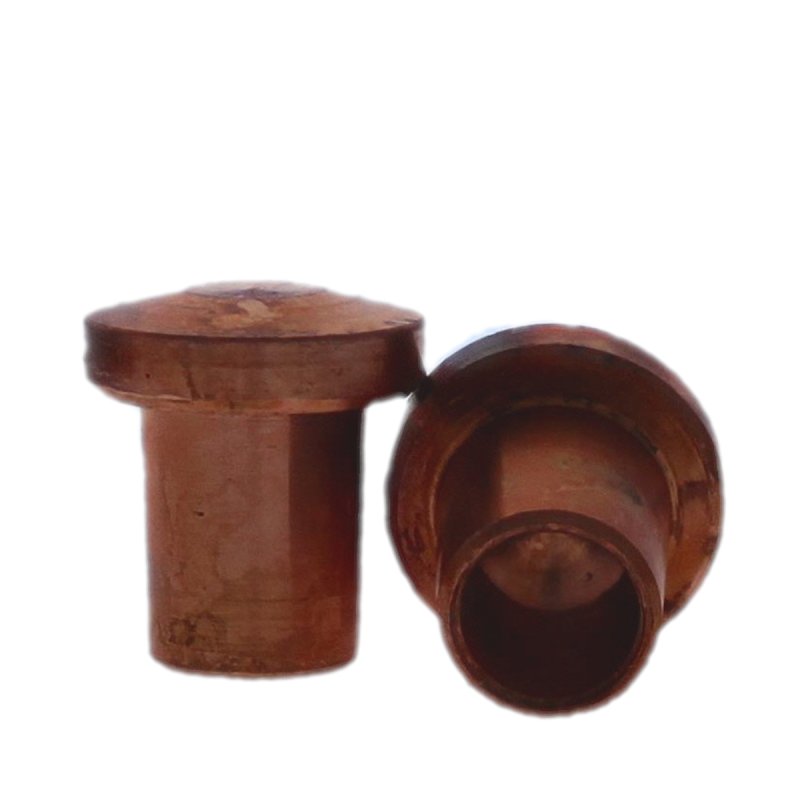

Heavy Duty Paddle Tips are designed for use with Heavy Duty Paddle Holders. Their low profile design is ideal for welding in tight spaces.

RMWA Class 2 (C18200) material - a copper, chromium material recommend for high production operations spot welding hot or cold rolled steels, galvanized and coated materials.

The overall length is 0.6900 IN
The outside diameter is 0.625 IN
The part mounts via a 5RW cap taper which is suitable for weld forces ranging between 800 to 1500 pounds of force.
The E nose or Truncated face tip is an efficient design that does not trap weld flash on the face and may reduce mushrooming.
The weld face is 0.25 IN

Specifications

RWMA Material Type	RWMA Class 2 - C18200
RWMA Taper	5RW Cap Taper
Nose Type	E
Overall Length	0.69000
Diameter	0.62500
Welding Face Dia.	0.25
Unit of Measure	IN
Offset / Truncated Angle	15.0
