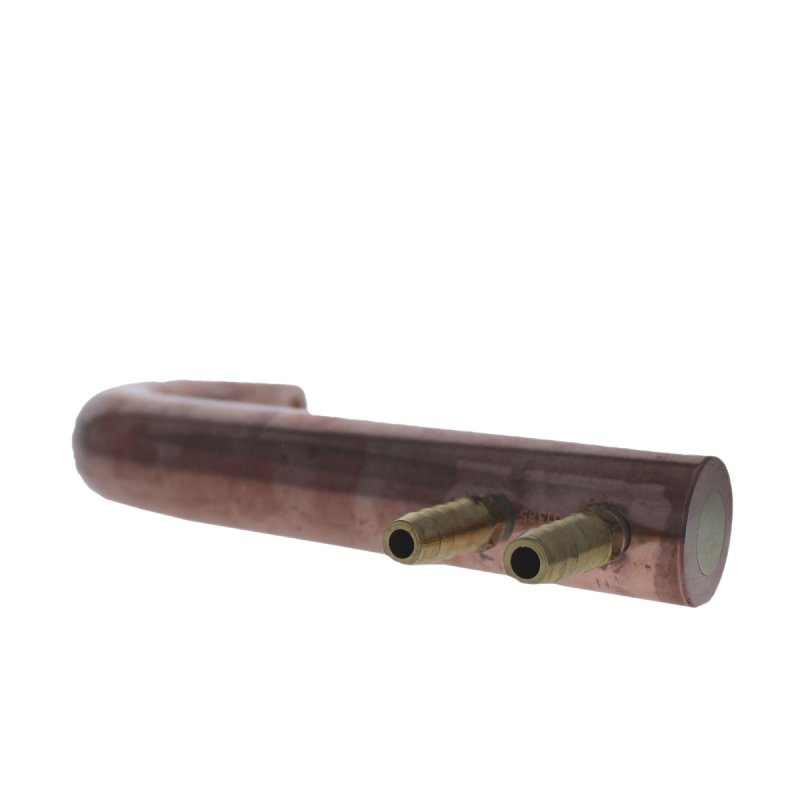

SH-7195 PADDLE HOLDER
Part #: 345-7195
Request 3D Model
Heavy Duty Paddle Type Holders are designed for welding in tight spaces where weld forces are greater than 1,000 lbs. The holder is designed to work with Heavy Duty Paddle Tips, but also holds any 4RW taper. The holder is designed for use in Rocker Arm or Pedestal Type Welders.
RMWA Class 3 material is high strength copper alloy recommended for structural secondary components and electrode holders subjected to high forces. This is a heat treatable alloy used in the fully heat treated condition.
- The mounting shank diameter is 1.25 IN
- The part holds a subcomponent via a 4RW standard taper which is suitable for weld forces ranging between 200 to 800 pounds of force.
- The mounting shank length is 4 IN
- The offset is 4.00 IN
- The assembled head height is 0.75 IN
|RWMA Material||RWMA Class 3|
|Head Height with Socket Tip||0.7500|
