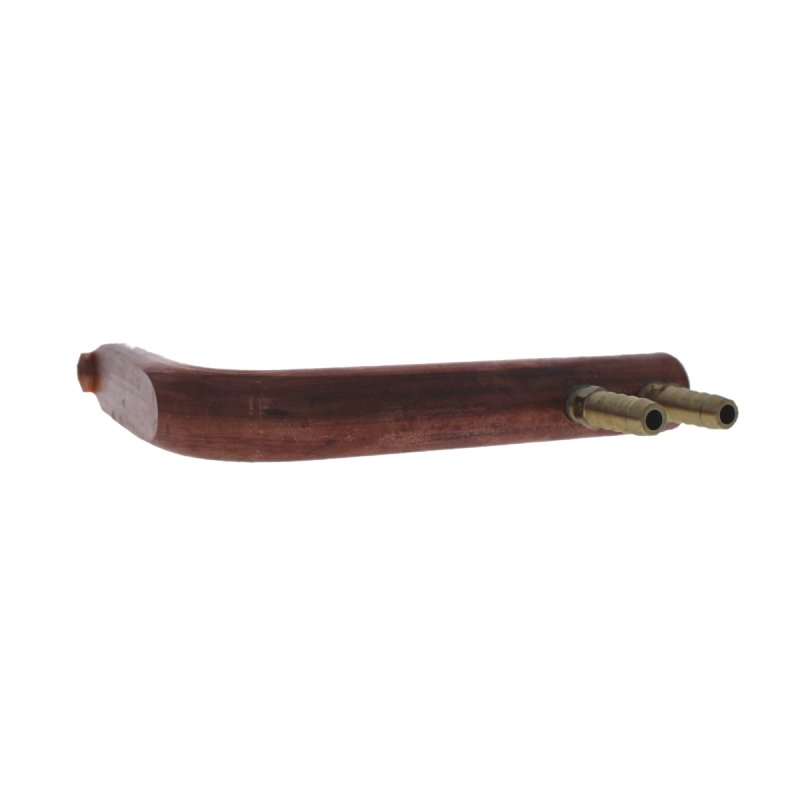

P-100-490 PADDLE HOLDER
Part #: 345-1000
Request 3D Model
Socket Type Holders are designed for welding in tight spaces where space is a premium. The holder is designed to work with Socket Type Tips which are held in place by a set screw. The holder is designed for use in Rocker Arm or Pedestal Type Welders.
RMWA Class 2 material is high conductivity and high strength alloy recommended for structural, current carrying secondary components and electrode holders. This is a heat treatable alloy used in the fully heat treated condition.
- The mounting shank diameter is 1.00 IN
- A 10 - 32 Tap Hold Screw holds the tip in place
- The mounting shank length is 3 IN
- The offset is 4.00 IN
- The assembled head height is 0.69 IN
|RWMA Material||RWMA Class 2|
|Socket Tip Engagement||10 - 32 Tap Hold Screw|
|Head Height with Socket Tip||0.6875|
