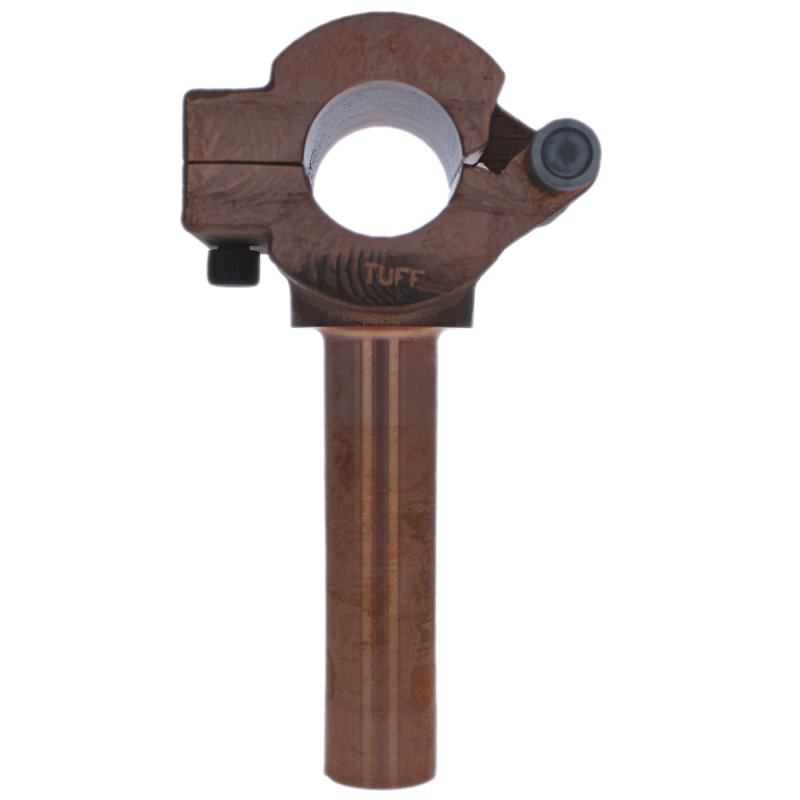

T-1-1 TEE CONNECTOR

T-1-1 TEE CONNECTOR

Part #: 192-1100

Request 3D Model

Request 3D Model


Tee Connectors are a structural component designed to hold Straight Holders. This allows users to configure the tooling of a Rocker Arm or Pedestal welder to the geometry of the weld.

RMWA Class 3 material is high strength copper alloy recommended for structural secondary components and electrode holders subjected to high forces. This is a heat treatable alloy used in the fully heat treated condition.

  • The mounting shank length is 4.0 IN
  • The width of the head is 2.25 IN
  • The mounting shank diameter is 1 IN
  • The Tee Connector hole diameter is 1.25 IN

Specifications

RWMA Material Type RWMA Class 3
Shank Diameter 1
Hole Diameter 1.25
Width of Clamp Body 2.25000
Shank Length 4.000
Unit of Measure IN
