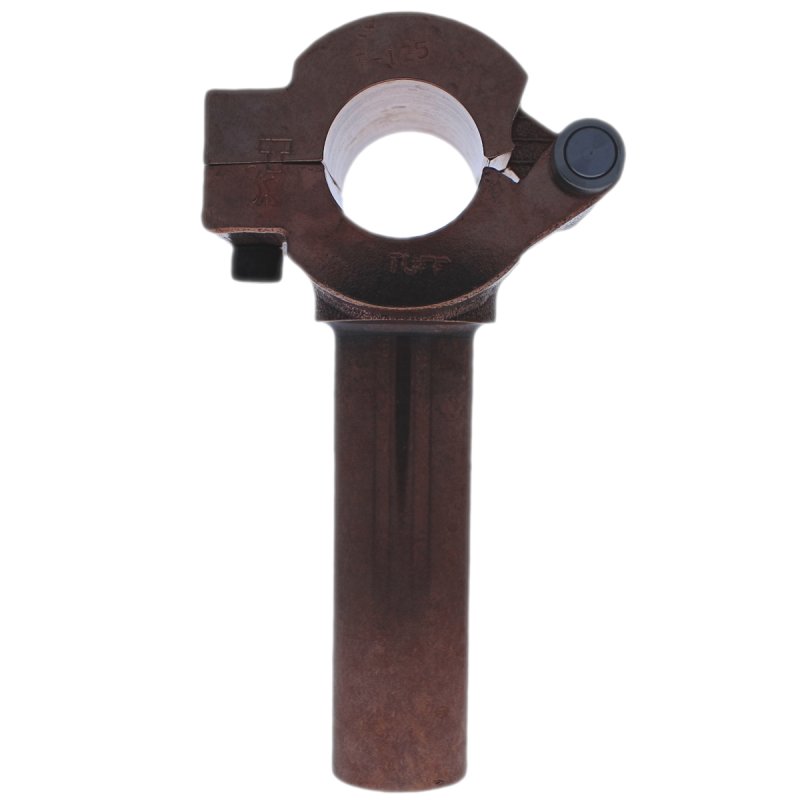

T-125 TEE CONNECTOR
Part #: 192-1250
Request 3D Model
Tee Connectors are a structural component designed to hold Straight Holders. This allows users to configure the tooling of a Rocker Arm or Pedestal welder to the geometry of the weld.
RMWA Class 3 material is high strength copper alloy recommended for structural secondary components and electrode holders subjected to high forces. This is a heat treatable alloy used in the fully heat treated condition.
- The mounting shank length is 4.0 IN
- The width of the head is 2.25 IN
- The mounting shank diameter is 1.25 IN
- The Tee Connector hole diameter is 1.25 IN
|RWMA Material Type||RWMA Class 3|
|Width of Clamp Body||2.25000|
|Unit of Measure||IN|
