Part #: 175-1252-5
Request 3D Model

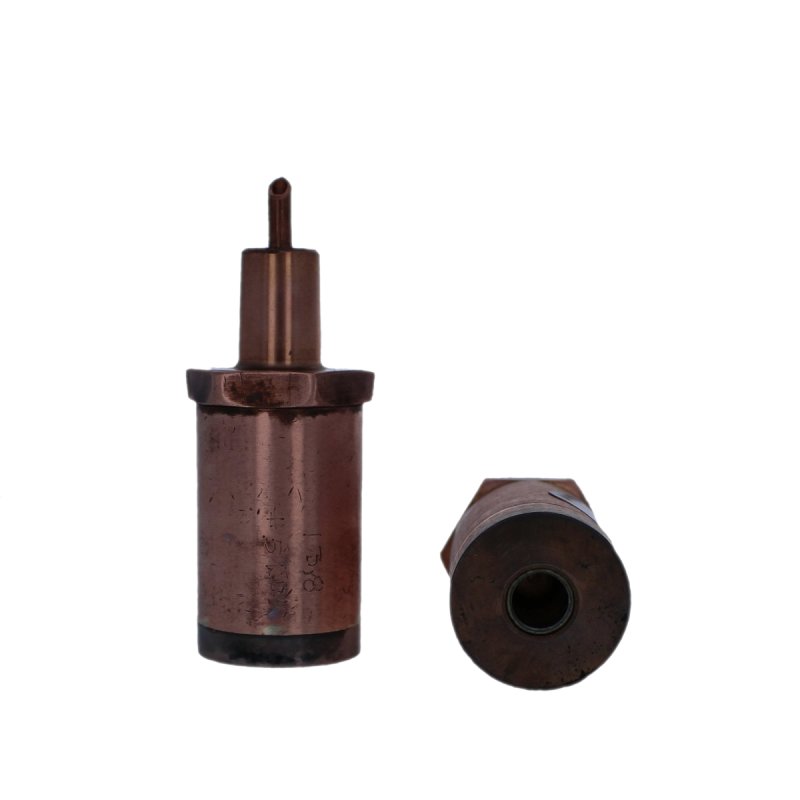

Artic Stud Electrodes are designed to optimize cooling of the weldface for projection welds. The part has internal water cooling lines that cool the weld face to improve the electrode life and weld quality. The stud hole is lined with an insulated bushing with high wear resistance.
A refractory metal face is made of RWMA Class 11 (75% tungsten, 25% copper) (ASTM 702 C1D) is brazed onto the base material. This face is typically used for welding at higher pressure and heat common with projection welding.
- The overall length is 3.000 IN
- The part mounts via a 5RW standard taper which is suitable for weld forces ranging between 800 to 1500 pounds of force.
- The weld face is 1.25 IN
- The part has an insulated bushing for welding a 1/4 stud
- The depth of the insulated hole for the stud is 1 IN
|Face Refractory Material||RWMA Class 11 - 10W|
|Base RWMA Material Type||RWMA Class 2 - C18200|
|Engagement to Holder||5RW|
|Overall Body Length||3.00000|
|Weld Face Diameter||1.25|
|Stud Hole Depth||1.000|
|For Stud Diameter||1/4|
|Refractory Metal Thickness||0.250|
|Unit of Measure||IN|
