Metric Upper Electrode

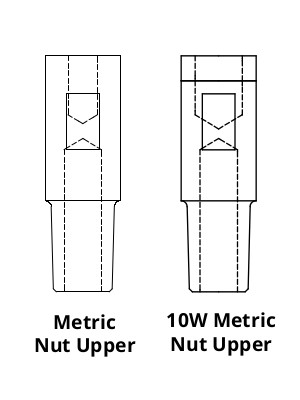

Tuffaloy Metric Electrodes for Uppers Header

Metric nut Upper electrodes are made from RWMA class 2 material and have an optional 10W for longer life. These electrodes are designed to receive the pin of Metric Nut Welding Assemblies.

They are available in a variety of bore and faces sizes to accommodate virtually any pin size.

PartDescription TUFF_Nut_and_Stud_Welding_Auto_Nut_Feeder_Components_Metric_Upper_Electrode_HEADER_PART_XREFACTMATERIAL_C RWMA Material Type Engagement to Holder Overall Length Weld Face Diameter Hole Diameter Hole Depth TUFF_Nut_and_Stud_Welding_Auto_Nut_Feeder_Components_Metric_Upper_Electrode_HEADER_PART_XREFACTTHICKNESS_C Unit of Measure
186-0101-10W
TNFD16-M5-16-3-10W 5mm UPPER ELEC. RWMA Class 11 - 10W RWMA Class 2 - C18200 5RW 2.36000 0.625 0.19700 0.590 IN
186-0104-10W
TNFD20-M10-16-3-10W 10mm UPPER ELEC. RWMA Class 11 - 10W RWMA Class 2 - C18200 5RW 2.36000 0.75 0.39400 0.590 IN
186-0103-10W
TNFD20-M8-16-3-10W 7.5mm UPPER ELEC. RWMA Class 11 - 10W RWMA Class 2 - C18200 5RW 2.36000 0.75 0.29500 0.590 IN
186-0105-10W
TNFD20-M12-16-3-10W 12mm UPPER ELEC. RWMA Class 11 - 10W RWMA Class 2 - C18200 5RW 2.36000 0.75 0.47200 0.590 0.250 IN
186-0102-10W
TNFD20-M6-16-3-10W 6mm UPPER ELEC. RWMA Class 11 - 10W RWMA Class 2 - C18200 5RW 2.36000 0.75 0.23600 0.590 IN
186-0101
TNFD16-M5-16-3 5mm UPPER ELEC. RWMA Class 2 - C18200 5RW 2.36000 0.625 0.19700 0.590 IN
186-0102
TNFD20-M6-16-3 6mm UPPER ELEC. RWMA Class 2 - C18200 5RW 2.36000 0.75 0.23600 0.590 IN
186-0103
TNFD20-M8-16-3 7.5mm UPPER ELEC. RWMA Class 2 - C18200 5RW 2.36000 0.75 0.29500 0.590 IN
186-0104
TNFD20-M10-16-3 10mm UPPER ELEC. RWMA Class 2 - C18200 5RW 2.36000 0.75 0.39400 0.590 IN
186-0105
TNFD20-M12-16-3 12mm UPPER ELEC. RWMA Class 2 - C18200 5RW 2.36000 0.75 0.47200 0.590 IN
TNFD16-M5-16-3-10W 5mm UPPER ELEC. TNFD20-M10-16-3-10W 10mm UPPER ELEC. TNFD20-M8-16-3-10W 7.5mm UPPER ELEC. TNFD20-M12-16-3-10W 12mm UPPER ELEC. TNFD20-M6-16-3-10W 6mm UPPER ELEC. TNFD16-M5-16-3 5mm UPPER ELEC. TNFD20-M6-16-3 6mm UPPER ELEC. TNFD20-M8-16-3 7.5mm UPPER ELEC. TNFD20-M10-16-3 10mm UPPER ELEC. TNFD20-M12-16-3 12mm UPPER ELEC.
