Heavy Duty Stud Electrodes

Tuffaloy Heavy Duty Stud Electrodes Header

Tuffaloy Heavy Duty Stud Electrodes are designed for stud welding applications. The insulator is made to withstand the constant friction that is applied as the stud is inserted and removed. The parts are available with a optional 10W weld face for longer life.

The Heavy Duty Stud Electrodes are designed for use with Tuffaloy's Heavy Duty Stud-Nut Holders which are suitable for high forces used for projection welding.

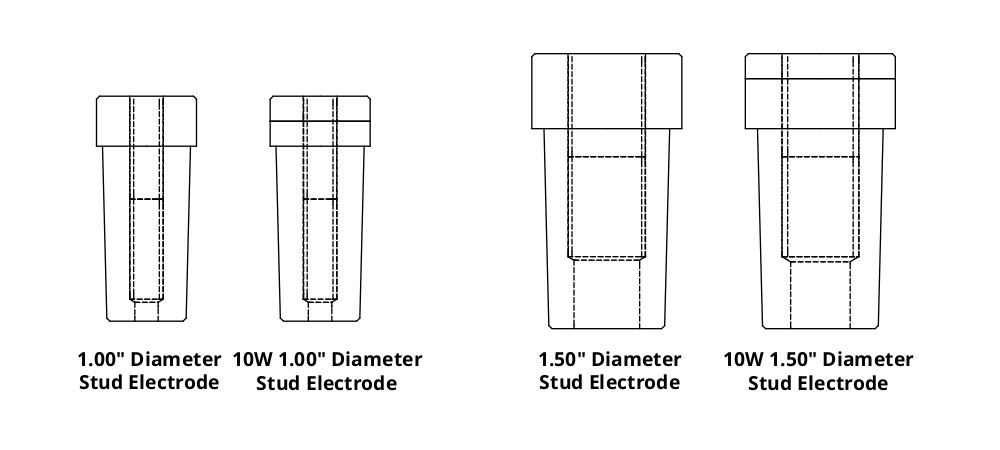

The parts have a large diameter taper available in two sizes:

  • HD Size 1 with a 1.00 IN diameter weld face
  • HD Size 2 with a 1.50 IN diameter weld face
PartDescription Face Refractory Material RWMA Material Type PM Style Engagement to Holder Body Length Weld Face Diameter For Stud Diameter Refractory Metal Thickness Unit of Measure
175-5061-10W
506-10W (6mm) STUD ELECTRODE RWMA Class 11 - 10W RWMA Class 2 - C18200 HD Size 2 2.75000 1.0 6 mm 0.250 IN
175-4381-10W
438-10W STUD ELECTRODE RWMA Class 11 - 10W RWMA Class 2 - C18200 HD Size 2 2.75000 1.5 1/2 0.250 IN
175-4391
439 STUD ELECTRODE RWMA Class 2 - C18200 HD Size 2 2.75000 1.5 9/16 IN
175-4391-10W
439-10W STUD ELECTRODE RWMA Class 11 - 10W RWMA Class 2 - C18200 HD Size 2 2.75000 1.5 9/16 0.250 IN
175-4401
440 STUD ELECTRODE RWMA Class 2 - C18200 HD Size 2 2.75000 1.5 5/8 IN
175-4401-10W
440-10W STUD ELECTRODE RWMA Class 11 - 10W RWMA Class 2 - C18200 HD Size 2 2.75000 1.5 5/8 0.250 IN
175-4411
441 STUD ELECTRODE RWMA Class 2 - C18200 HD Size 2 2.75000 1.5 11/16 IN
175-4411-10W
441-10W STUD ELECTRODE RWMA Class 11 - 10W RWMA Class 2 - C18200 HD Size 2 2.75000 1.5 11/16 0.250 IN
175-4421
442 STUD ELECTRODE RWMA Class 2 - C18200 HD Size 2 2.75000 1.5 3/4 IN
175-4421-10W
442-10W STUD ELECTRODE RWMA Class 11 - 10W RWMA Class 2 - C18200 HD Size 2 2.75000 1.5 3/4 0.250 IN
175-5061
506 6mm STUD ELECTRODE RWMA Class 2 - C18200 HD Size 2 2.75000 1.0 6 mm IN
175-4381
438 STUD ELECTRODE RWMA Class 2 - C18200 HD Size 2 2.75000 1.5 1/2 IN
175-5071
507 (7mm) STUD ELECTRODE RWMA Class 2 - C18200 HD Size 2 2.75000 1.0 7 mm IN
175-5071-10W
507-10W (7mm) STUD ELECTRODE RWMA Class 11 - 10W RWMA Class 2 - C18200 HD Size 2 2.75000 1.0 7 mm 0.250 IN
175-5091
509 (9mm) STUD ELECTRODE RWMA Class 2 - C18200 HD Size 2 2.75000 1.0 9 mm IN
175-5091-10W
509-10W (9mm) STUD ELECTRODE RWMA Class 11 - 10W RWMA Class 2 - C18200 HD Size 2 2.75000 1.0 9 mm 0.250 IN
175-5101
510 (10mm) STUD ELECTRODE RWMA Class 2 - C18200 HD Size 2 2.75000 1.0 10 mm IN
175-5101-10W
510-10W (10mm) STUD ELECTRODE RWMA Class 11 - 10W RWMA Class 2 - C18200 HD Size 2 2.75000 1.0 10 mm 0.250 IN
175-5102
510-2 (10mm) STUD ELECTRODE RWMA Class 2 - C18200 HD Size 2 2.75000 1.5 10 mm IN
175-5102-10W
510-2-10W (10mm) STUD ELECTRODE RWMA Class 11 - 10W RWMA Class 2 - C18200 HD Size 2 2.75000 1.5 10 mm 0.250 IN
175-5122
512-2 (12mm) STUD ELECTRODE RWMA Class 2 - C18200 HD Size 2 2.75000 1.5 12 mm IN
175-5122-10W
512-2-10W (12mm) STUD ELECTRODE RWMA Class 11 - 10W RWMA Class 2 - C18200 HD Size 2 2.75000 1.5 12 mm 0.250 IN
175-4051-10W
405-10W STUD ELECTRODE RWMA Class 11 - 10W RWMA Class 2 - C18200 HD Size 1 2.25000 1 5/16 (8mm) 0.250 IN
175-4001-10W
400-10W STUD ELECTRODE RWMA Class 11 - 10W RWMA Class 2 - C18200 HD Size 1 2.25000 1 #6 0.250 IN
175-4011
401 STUD ELECTRODE RWMA Class 2 - C18200 HD Size 1 2.25000 1 #8 IN
175-4011-10W
401-10W STUD ELECTRODE RWMA Class 11 - 10W RWMA Class 2 - C18200 HD Size 1 2.25000 1 #8 0.250 IN
175-4021
402 STUD ELECTRODE RWMA Class 2 - C18200 HD Size 1 2.25000 1 #10 IN
175-4021-10W
402-10W STUD ELECTRODE RWMA Class 11 - 10W RWMA Class 2 - C18200 HD Size 1 2.25000 1 #10 0.250 IN
175-4031
403 STUD ELECTRODE RWMA Class 2 - C18200 HD Size 1 2.25000 1 #12 IN
175-4031-10W
403-10W STUD ELECTRODE RWMA Class 11 - 10W RWMA Class 2 - C18200 HD Size 1 2.25000 1 #12 0.250 IN
175-4041
404 STUD ELECTRODE RWMA Class 2 - C18200 HD Size 1 2.25000 1 1/4 IN
175-4041-10W
404-10W STUD ELECTRODE RWMA Class 11 - 10W RWMA Class 2 - C18200 HD Size 1 2.25000 1 1/4 0.250 IN
175-4051
405 STUD ELECTRODE RWMA Class 2 - C18200 HD Size 1 2.25000 1 5/16 (8mm) IN
175-4001
400 STUD ELECTRODE RWMA Class 2 - C18200 HD Size 1 2.25000 1 #6 IN
175-4061
406 STUD ELECTRODE RWMA Class 2 - C18200 HD Size 1 2.25000 1 3/8 IN
175-4061-10W
406-10W STUD ELECTRODE RWMA Class 11 - 10W RWMA Class 2 - C18200 HD Size 1 2.25000 1 3/8 0.250 IN
175-4071
407 STUD ELECTRODE RWMA Class 2 - C18200 HD Size 1 2.25000 1 7/16 IN
175-4071-10W
407-10W STUD ELECTRODE RWMA Class 11 - 10W RWMA Class 2 - C18200 HD Size 1 2.25000 1 7/16 0.250 IN
175-4081
408 STUD ELECTRODE RWMA Class 2 - C18200 HD Size 1 2.25000 1 1/2 IN
175-4361
436 STUD ELECTRODE RWMA Class 2 - C18200 HD Size 2 2.75000 1.5 3/8 IN
175-4361-10W
436-10W STUD ELECT 1.5" RWMA Class 11 - 10W RWMA Class 2 - C18200 HD Size 2 2.75000 1.5 3/8 0.250 IN
175-4371
437 STUD ELECTRODE RWMA Class 2 - C18200 HD Size 2 2.75000 1.5 7/16 IN
175-4371-10W
437-10W STUD ELECTRODE RWMA Class 11 - 10W RWMA Class 2 - C18200 HD Size 2 2.75000 1.5 7/16 0.250 IN
