Electrode Angle Adapters

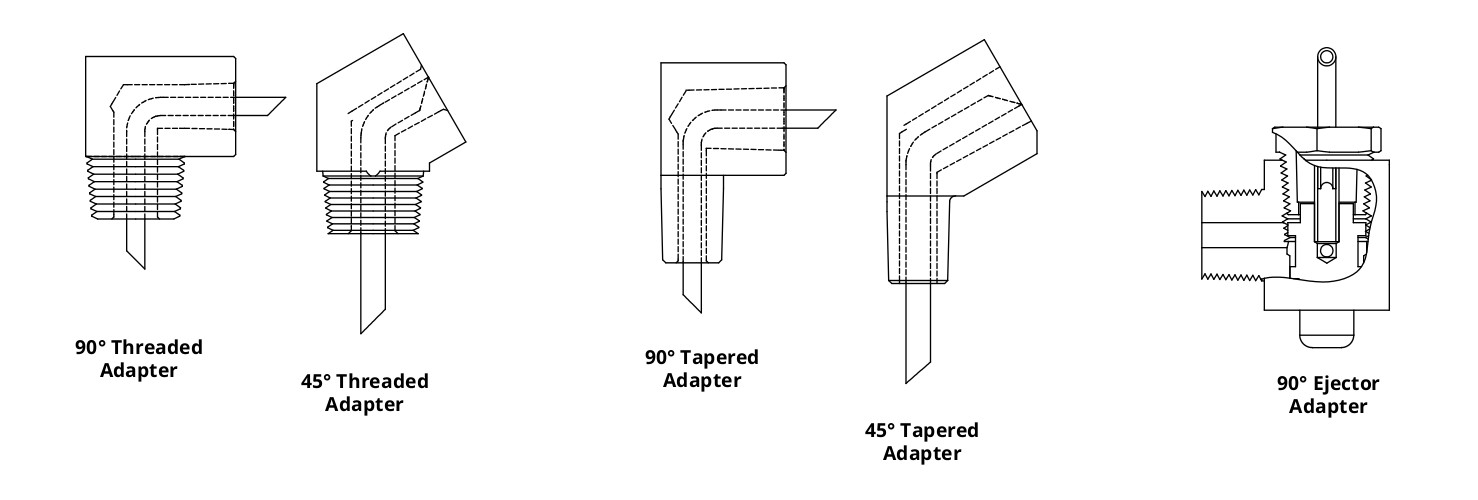

Tuffaloy Angled Electrode Adapters Header

Electrode Angle Adapters are used to improve the holder life and flexibility by allowing users to select different angles for tooling setups. The adapter can also be replaced when the taper wears out.

Electrode Angle Adapters are designed to be used with Tuffaloy Straight Holders.

PartDescription RWMA Material Type Pipe Thread or Taper Taper Socket Overall Length Offset Body Length Width of Body Unit of Measure Angle of Engagement (deg) Tube Ejector Type
190-8430
AD-584-30 ADAPTER RWMA Class 2 5/8 - 14 NPT 4RW 2.00000 1.5000 1.2500 1.00000 IN 30.0 Yes No
190-8490
AD-584-90 ADAPTER RWMA Class 2 5/8 - 14 NPT 4RW 1.62500 1.5000 1.0000 1.00000 IN 90.0 Yes No
190-8530
AD-585-30 ADAPTER RWMA Class 2 5/8 - 14 NPT 5RW 2.00000 1.5000 1.2500 1.00000 IN 30.0 Yes No
190-8590
AD-585-90 ADAPTER RWMA Class 2 5/8 - 14 NPT 5RW 1.62500 1.5000 1.0000 1.00000 IN 90.0 Yes No
190-8690
AD-346-90 ADAPTER RWMA Class 2 3/4 - 14 NPT 6RW 2.25000 2.2500 1.3750 1.25000 IN 90.0 Yes No
190-9490
AD-584-90E ADAPTER RWMA Class 2 5/8 - 14 NPT 4RW 1.87500 1.5000 1.2500 1.25000 IN 90.0 Yes Yes
190-9549
AD-54-90 ADAPTER RWMA Class 2 5RW 4RW 2.00000 1.2500 1.1250 1.00000 IN 90.0 Yes No
190-9553
AD-55-30 ADAPTER RWMA Class 2 5RW 5RW 2.50000 1.5000 1.2500 1.00000 IN 30.0 Yes No
190-9559
AD-55-90 ADAPTER RWMA Class 2 5RW 5RW 2.00000 1.2500 1.2500 1.00000 IN 90.0 Yes No
190-9590
AD-585-90E ADAPTER RWMA Class 2 5/8 - 14 NPT 5RW 1.87500 1.5000 1.2500 1.25000 IN 90.0 Yes Yes
190-9591
AD-785-90 EJECTOR ADAPTER RWMA Class 2 7/8 -14 NPT 5/8 - 14 NPT 1.87500 1.5000 1.2500 1.25000 IN 90.0 Yes Yes
AD-584-30 ADAPTER AD-584-90 ADAPTER AD-585-30 ADAPTER AD-585-90 ADAPTER AD-346-90 ADAPTER AD-584-90E ADAPTER AD-54-90 ADAPTER AD-55-30 ADAPTER AD-55-90 ADAPTER AD-585-90E ADAPTER AD-785-90 EJECTOR ADAPTER
