Standard Platen Mount Holders

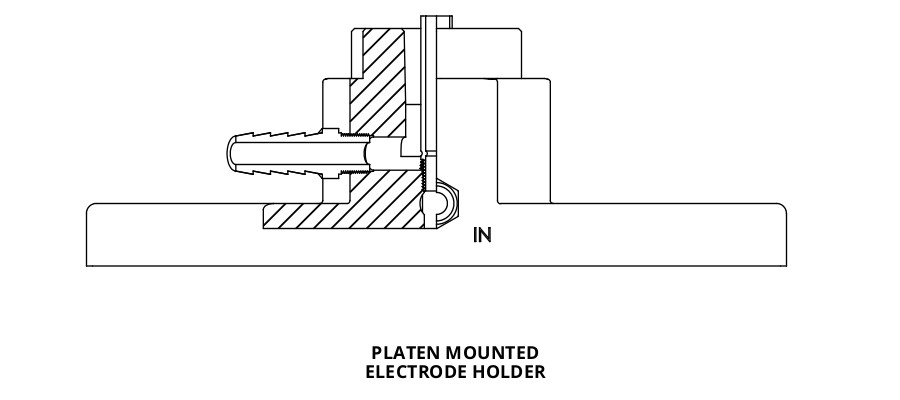

Tuffaloy Platten Mount Electrode Holder Header

Standard Platen Mount (PM) holders are designed to mount directly to the planten of a Standard Press welder. The compact design allows for multiple holders to be installed on the platen which makes special fixture building easy.

They come in two body sizes which match standard T-slot spacings, either of which can be furnished with a female taper to hold any tapered electrode or shank, or with threads for threaded electrodes or threaded adapters (straight thread style).

PartDescription RWMA Material Type PM Size Mounting Taper or Adapter Engagement Body Height Base Length Base Width Base Thickness Unit of Measure
350-4560
4560 PM HOLDER #4RW RWMA Class 2 1 9/16 inch mounting bolts 4RW 1.75000 4.25 1.50000 0.50 IN
350-4561
4561 PM HOLDER #5 RW RWMA Class 2 1 9/16 inch mounting bolts 5RW 1.75000 4.25 1.50000 0.50 IN
350-4562
4562 PM HOLDER #6 RW RWMA Class 2 1 9/16 inch mounting bolts 6RW 1.75000 4.25 1.50000 0.50 IN
350-4563
4563 PM HOLDER #7 RW RWMA Class 2 1 9/16 inch mounting bolts 7RW 1.75000 4.25 1.50000 0.50 IN
350-4570
4570 PM HOLDER #4 RW RWMA Class 2 2 3/4 inch mounting bolts 4RW 2.37500 7.00 2.00000 0.75 IN
350-4571
4571 PM HOLDER #5 RW RWMA Class 2 2 3/4 inch mounting bolts 5RW 2.37500 7.00 2.00000 0.75 IN
350-4572
4572 PM HOLDER #6 RW RWMA Class 2 2 3/4 inch mounting bolts 6RW 2.37500 7.00 2.00000 0.75 IN
350-4573
4573 PM HOLDER #7 RW RWMA Class 2 2 3/4 inch mounting bolts 7RW 2.37500 7.00 2.00000 0.75 IN
350-4580
4580 PM-1 5/8"-11 THREAD RWMA Class 2 1 9/16 inch mounting bolts 5/8-11 1.75000 4.25 1.50000 0.50 IN
350-4581
4581 PM-1 3/4"-10 THREAD RWMA Class 2 1 9/16 inch mounting bolts 3/4-10 1.75000 4.25 1.50000 0.50 IN
350-4582
4582 PM-1 7/8"-14 THREAD RWMA Class 2 1 9/16 inch mounting bolts 7/8 - 14 1.75000 4.25 1.50000 0.50 IN
350-4583
4583 PM-1 1-12 THREAD RWMA Class 2 1 9/16 inch mounting bolts 1 - 12 1.75000 4.25 1.50000 0.50 IN
350-4590
4590 PM-2 5/8"-11 THREAD RWMA Class 2 2 3/4 IN mounting bolts 5/8-11 2.37500 7.00 2.00000 0.75 IN
350-4591
4591 PM-2 3/4"-10 THREAD RWMA Class 2 2 3/4 IN mounting bolts 3/4-10 2.37500 7.00 2.00000 0.75 IN
350-4592
4592 PM-2 7/8"-14 THREAD RWMA Class 2 2 3/4 IN mounting bolts 7/8 - 14 2.37500 7.00 2.00000 0.75 IN
350-4593
4593 PM-2 1-12" THREAD RWMA Class 2 2 3/4 IN mounting bolts 1 - 12 2.37500 7.00 2.00000 0.75 IN
4560 PM HOLDER #4RW 4561 PM HOLDER #5 RW 4562 PM HOLDER #6 RW 4563 PM HOLDER #7 RW 4570 PM HOLDER #4 RW 4571 PM HOLDER #5 RW 4572 PM HOLDER #6 RW 4573 PM HOLDER #7 RW 4580 PM-1 5/8"-11 THREAD 4581 PM-1 3/4"-10 THREAD 4582 PM-1 7/8"-14 THREAD 4583 PM-1 1-12 THREAD 4590 PM-2 5/8"-11 THREAD 4591 PM-2 3/4"-10 THREAD 4592 PM-2 7/8"-14 THREAD 4593 PM-2 1-12" THREAD
