Straight Shank Tips

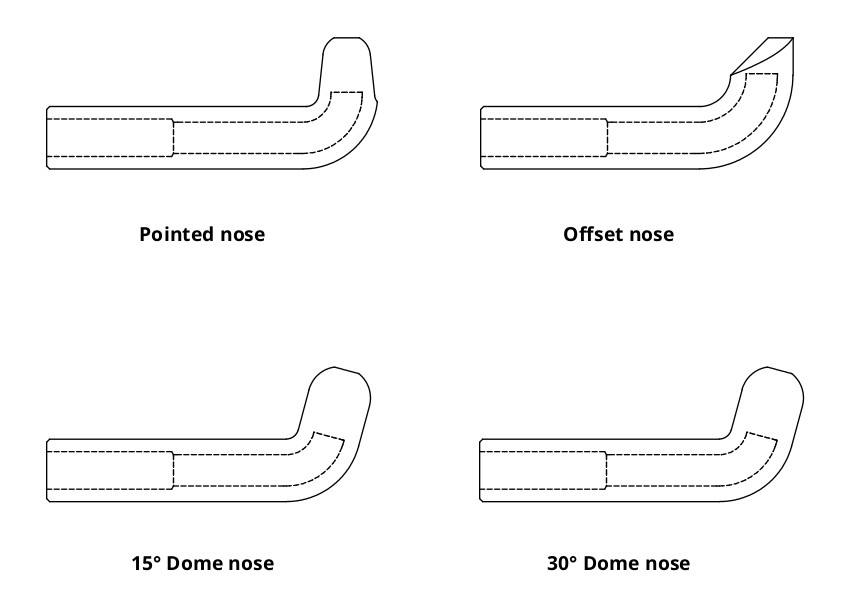

Tuffaloy Variable Offset Straight Tips Header

Straight Shank Tips are designed for use with Variable Offset Holders. Users can modify the offset by positioning the tip in place then tightening the set screw to lock the tip in position.

Straight Shank Tips are come in various nose types and angles to fit any weld.

Part Description RWMA Material Type Shank Enagement Dia. Nose Type Overall Length Weldface Dia. Offset Unit of Measure Nose Engagement Angle
170-4408
SE-4408-1 SHANK TIP RWMA Class 2 - C18200 0.625 IN diameter A 3.00000 0.25 1.0000 IN 90.0
170-4409
SE-4409-1 SHANK TIP RWMA Class 2 - C18200 0.625 IN diameter D 3.00000 0.25 1.0000 IN 90.0
170-4410
SE-4410-1 SHANK TIP RWMA Class 2 - C18200 0.625 IN diameter B 3.00000 0.25 1.0000 IN 75.0
170-4411
SE-4411-1 SHANK TIP RWMA Class 2 - C18200 0.625 IN diameter B 3.00000 0.25 1.0000 IN 60.0
170-4418
SE-4408-2 SHANK TIP RWMA Class 2 - C18200 0.625 IN diameter A 3.00000 0.25 2.0000 IN 90.0
170-4419
SE-4409-2 SHANK TIP RWMA Class 2 - C18200 0.625 IN diameter D 3.00000 0.25 2.0000 IN 90.0
170-4420
SE-4410-2 SHANK TIP RWMA Class 2 - C18200 0.625 IN diameter B 3.00000 0.25 2.0000 IN 75.0
170-4421
SE-4411-2 SHANK TIP RWMA Class 2 - C18200 0.625 IN diameter B 3.00000 0.25 2.0000 IN 60.0
SE-4408-1 SHANK TIP SE-4409-1 SHANK TIP SE-4410-1 SHANK TIP SE-4411-1 SHANK TIP SE-4408-2 SHANK TIP SE-4409-2 SHANK TIP SE-4410-2 SHANK TIP SE-4411-2 SHANK TIP
