Straight Shanks for Male Cap

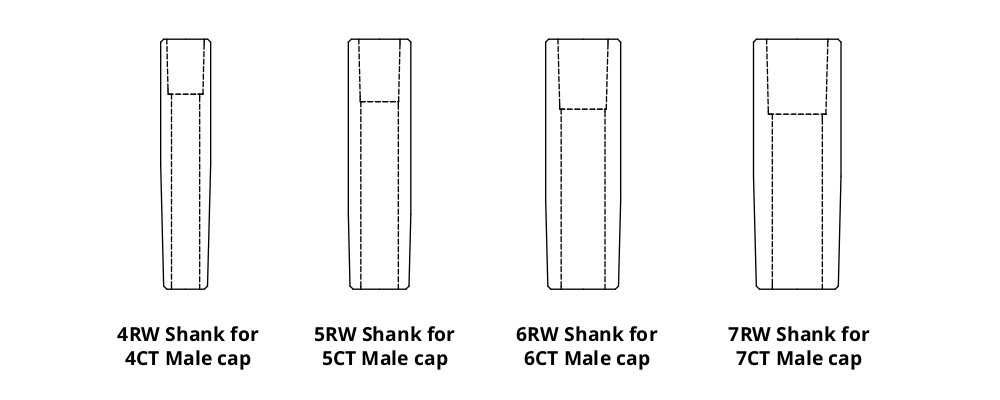

Tuffaloy Straight Shanks for Male Caps Header

Straight Shanks for Male Caps are a cost effective way to utilize caps on any standard rocker arm, press type, robot or bench mounted machine. The shank has a water hole through the entire part to ensure the cap is properly cooled.

The combination of shanks and caps are an economical way to reduce the tooling cost for an application because a cap tip is cheaper than a standard straight or double bend electrode.

It is recommended that a standard or double bend electrode is selected when spot welding heavily coated metals such as galvanized or tin-plate.

PartDescription RWMA Material Type RWMA Base Taper RWMA Cap Taper Overall Length Outer Diameter Inner Diameter Assembled Length Unit of Measure
161-2404
TG-2404 SHANK RWMA Class 2 - C18200 4RW 4RW Cap Taper 1.00000 0.50000 0.28125 1.7500 IN
161-2405
TG-2405 SHANK RWMA Class 2 - C18200 4RW 4RW Cap Taper 1.25000 0.50000 0.28125 2.0000 IN
161-2406
TG-2406 SHANK RWMA Class 2 - C18200 4RW 4RW Cap Taper 1.50000 0.50000 0.28125 2.2500 IN
161-2407
TG-2407 SHANK RWMA Class 2 - C18200 4RW 4RW Cap Taper 1.75000 0.50000 0.28125 2.5000 IN
161-2408
TG-2408 SHANK RWMA Class 2 - C18200 4RW 4RW Cap Taper 2.00000 0.50000 0.28125 2.7500 IN
161-2409
TG-2409 SHANK RWMA Class 2 - C18200 4RW 4RW Cap Taper 2.25000 0.50000 0.28125 3.0000 IN
161-2410
TG-2410 SHANK RWMA Class 2 - C18200 4RW 4RW Cap Taper 2.50000 0.50000 0.28125 3.2500 IN
161-2411
TG-2411 SHANK RWMA Class 2 - C18200 4RW 4RW Cap Taper 2.75000 0.50000 0.28125 3.5000 IN
161-2412
TG-2412 SHANK RWMA Class 2 - C18200 4RW 4RW Cap Taper 3.00000 0.50000 0.28125 3.7500 IN
161-2413
TG-2413 SHANK RWMA Class 2 - C18200 4RW 4RW Cap Taper 3.25000 0.50000 0.28125 4.0000 IN
161-2414
TG-2414 SHANK RWMA Class 2 - C18200 4RW 4RW Cap Taper 3.50000 0.50000 0.28125 4.2500 IN
161-2415
TG-2415 SHANK RWMA Class 2 - C18200 4RW 4RW Cap Taper 3.75000 0.50000 0.28125 4.5000 IN
161-2416
TG-2416 SHANK RWMA Class 2 - C18200 4RW 4RW Cap Taper 4.00000 0.50000 0.28125 4.7500 IN
161-2417
TG-2417 SHANK RWMA Class 2 - C18200 4RW 4RW Cap Taper 4.25000 0.50000 0.28125 5.0000 IN
161-2418
TG-2418 SHANK RWMA Class 2 - C18200 4RW 4RW Cap Taper 4.50000 0.50000 0.28125 5.2500 IN
161-2420
TG-2420 SHANK RWMA Class 2 - C18200 4RW 4RW Cap Taper 5.00000 0.50000 0.28125 5.7500 IN
161-2422
TG-2422 SHANK RWMA Class 2 - C18200 4RW 4RW Cap Taper 5.50000 0.50000 0.28125 6.2500 IN
161-2424
TG-2424 SHANK RWMA Class 2 - C18200 4RW 4RW Cap Taper 6.00000 0.50000 0.28125 6.7500 IN
161-2504
TG-2504 SHANK RWMA Class 2 - C18200 5RW 5RW Cap Taper 1.00000 0.62500 0.37500 1.7500 IN
161-2505
TG-2505 SHANK RWMA Class 2 - C18200 5RW 5RW Cap Taper 1.25000 0.62500 0.37500 2.0000 IN
161-2506
TG-2506 SHANK RWMA Class 2 - C18200 5RW 5RW Cap Taper 1.50000 0.62500 0.37500 2.2500 IN
161-2507
TG-2507 SHANK RWMA Class 2 - C18200 5RW 5RW Cap Taper 1.75000 0.62500 0.37500 2.5000 IN
161-2508
TG-2508 SHANK RWMA Class 2 - C18200 5RW 5RW Cap Taper 2.00000 0.62500 0.37500 2.7500 IN
161-2509
TG-2509 SHANK RWMA Class 2 - C18200 5RW 5RW Cap Taper 2.25000 0.62500 0.37500 3.0000 IN
161-2510
TG-2510 SHANK RWMA Class 2 - C18200 5RW 5RW Cap Taper 2.50000 0.62500 0.37500 3.2500 IN
161-2511
TG-2511 SHANK RWMA Class 2 - C18200 5RW 5RW Cap Taper 2.75000 0.62500 0.37500 3.5000 IN
161-2512
TG-2512 SHANK RWMA Class 2 - C18200 5RW 5RW Cap Taper 3.00000 0.62500 0.37500 3.7500 IN
161-2513
TG-2513 SHANK RWMA Class 2 - C18200 5RW 5RW Cap Taper 3.25000 0.62500 0.37500 4.0000 IN
161-2514
TG-2514 SHANK RWMA Class 2 - C18200 5RW 5RW Cap Taper 3.50000 0.62500 0.37500 4.2500 IN
161-2515
TG-2515 SHANK RWMA Class 2 - C18200 5RW 5RW Cap Taper 3.75000 0.62500 0.37500 4.5000 IN
161-2516
TG-2516 SHANK RWMA Class 2 - C18200 5RW 5RW Cap Taper 4.00000 0.62500 0.37500 4.7500 IN
161-2517
TG-2517 SHANK RWMA Class 2 - C18200 5RW 5RW Cap Taper 4.25000 0.62500 0.37500 5.0000 IN
161-2518
TG-2518 SHANK RWMA Class 2 - C18200 5RW 5RW Cap Taper 4.50000 0.62500 0.37500 5.2500 IN
161-2520
TG-2520 Shank RWMA Class 2 - C18200 5RW 5RW Cap Taper 5.00000 0.62500 0.37500 5.7500 IN
161-2522
TG-2522 SHANK RWMA Class 2 - C18200 5RW 5RW Cap Taper 5.50000 0.62500 0.37500 6.2500 IN
161-2524
TG-2524 SHANK RWMA Class 2 - C18200 5RW 5RW Cap Taper 6.00000 0.62500 0.37500 6.7500 IN
161-2606
TG-2606 SHANK RWMA Class 2 - C18200 6RW 6RW Cap Taper 1.50000 0.75000 0.43750 2.5000 IN
161-2608
TG-2608 SHANK RWMA Class 2 - C18200 6RW 6RW Cap Taper 2.00000 0.75000 0.43750 3.0000 IN
161-2609
TG-2609 SHANK RWMA Class 2 - C18200 6RW 6RW Cap Taper 2.25000 0.75000 0.43750 3.2500 IN
161-2610
TG-2610 SHANK RWMA Class 2 - C18200 6RW 6RW Cap Taper 2.50000 0.75000 0.43750 3.5000 IN
161-2611
TG-2611 SHANK RWMA Class 2 - C18200 6RW 6RW Cap Taper 2.75000 0.75000 0.43750 3.7500 IN
161-2612
TG-2612 SHANK RWMA Class 2 - C18200 6RW 6RW Cap Taper 3.00000 0.75000 0.43750 4.0000 IN
161-2613
TG-2613 SHANK RWMA Class 2 - C18200 6RW 6RW Cap Taper 3.25000 0.75000 0.43750 4.2500 IN
161-2614
TG-2614 SHANK RWMA Class 2 - C18200 6RW 6RW Cap Taper 3.50000 0.75000 0.43750 4.5000 IN
161-2616
TG-2616 SHANK RWMA Class 2 - C18200 6RW 6RW Cap Taper 4.00000 0.75000 0.43750 5.0000 IN
161-2706
TG-2706 SHANK RWMA Class 2 - C18200 7RW 7RW Cap Taper 1.50000 0.87500 0.50000 2.5000 IN
161-2708
TG-2708 SHANK RWMA Class 2 - C18200 7RW 7RW Cap Taper 2.00000 0.87500 0.50000 3.0000 IN
161-2710
TG-2710 SHANK RWMA Class 2 - C18200 7RW 7RW Cap Taper 2.50000 0.87500 0.50000 3.5000 IN
161-2712
TG-2712 SHANK RWMA Class 2 - C18200 7RW 7RW Cap Taper 3.00000 0.87500 0.50000 4.0000 IN
